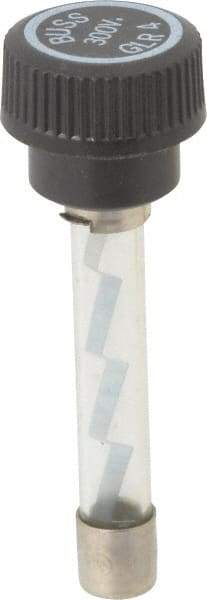

Cooper Bussmann - 300 VAC, 4 Amp, Fast-Acting Size Rejecting/NonRejecting Fuse - Fuse Holder Mount, 2-1/4" OAL, 10 at AC kA Rating, 15.9mm Diam
Item #: 81739948
Brand: Cooper Bussmann
Model #: GLR-4
Exact Tooling IR#: 04
Features and Benefits
Size rejecting/non rejecting fuses are designed to prevent fuses from being used with the incorrect size as well as prevent a low interrupting rating from being used in a circuit that needs a higher rating.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Size Rejecting/NonRejecting |
| Amperage | 4 |
| Voltage | 300 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (Decimal Inch) | 2.2500 |
| Overall Diameter (mm) | 15.90 |
| Overall Diameter (Decimal Inch) | 0.6300 |
| Material | Glass |
| Mounting Type | Fuse Holder |
| Rejection Setting | NonRejecting |
| Interrupting Rating (kA) | 10 @ AC |
| Standards Met | CSA C22.2 No. 248.14 Class 1422-01 File 53787 Certified; UL Listed 248-14 Guide JDYX File E19180 |
