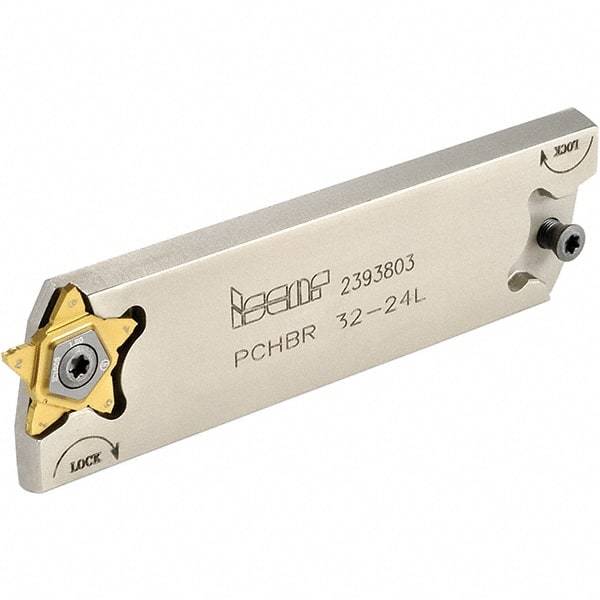

Iscar - 1.26" Blade Height, 0.3346" Blade Width, 110mm OAL, Left Hand Cut, Double End Indexable Cut-Off Blade - PCHB Blade, PentaCut Series
Item #: 81612566
Brand: Iscar
Model #: 2302303
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Left Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 8.50 |
| Blade Width (Decimal Inch) | 0.3346 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | PCHB |
| Insert Style | PENTA 34F-R/L; PENTA 34N-C; PENTA 34N-PB; PENTA 34R/L-C; PENTA 34R/L-PB |
| Insert Width (mm) | 1.50 |
| Insert Width (Decimal Inch) | 0.0590 |
| Series | PentaCut |
| Insert Holding Method | Screw |
| Cutting Height (mm) | 24.80 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Minimum Insert Width (mm) | 1.50 |
| Minimum Insert Width (Decimal Inch) | 0.0590 |
| Maximum Insert Width (mm) | 4.00 |
| Maximum Insert Width (Decimal Inch) | 0.1575 |
| Complete Insert Compatibility | PENTA..34.. |
| Complete Tool Block/Toolholder Style Compatibility | C..TBK..,HS..TBK..,IM..TBK..,SGT.. |
