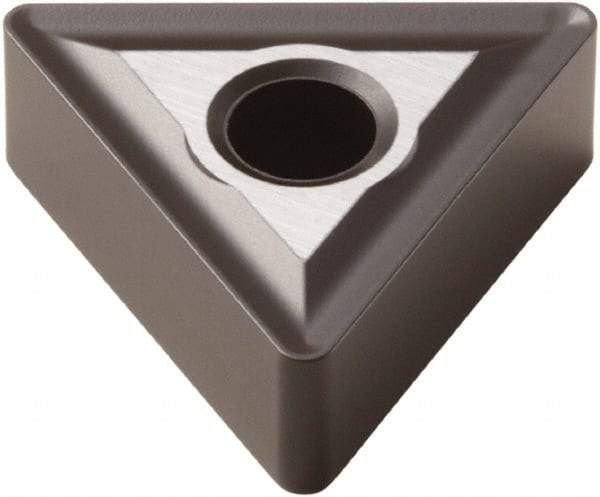

Seco - TNMG332 M4 Grade TK2001 Carbide Turning Insert - Triangle, 3/8" Inscr Circle, 0.188" Thick, 1/32" Corner Radius
Item #: 81598518
Brand: Seco
Model #: 70214
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | TK2001 |
| Chip Breaker | M4 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | TNMG 332-M4 |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | H |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
