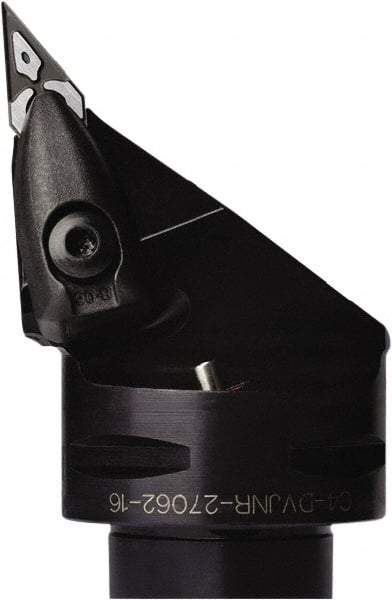

Seco - Right Hand Cut, Size C4, VNMG 332 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 26.92mm Ctr to Cutting Edge, 61.98mm Head Length, Series Seco-Capto
Item #: 81501025
Brand: Seco
Model #: 34065
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 61.98 |
| Head Length/Projection (Decimal Inch) | 2.4400 |
| Insert Style | VNMG 332 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 26.92 |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -4 |
| Neck Diameter (mm) | 39.88 |
| Neck Diameter (Decimal Inch) | 1.5700 |
| Complete Insert Compatibility | VNMG 332-FF2; VNMG 332-M3; VNMG 332-MF2; VNMG 332-MF3; VNMG 332-MF4; VNMG 332-MR4 |
