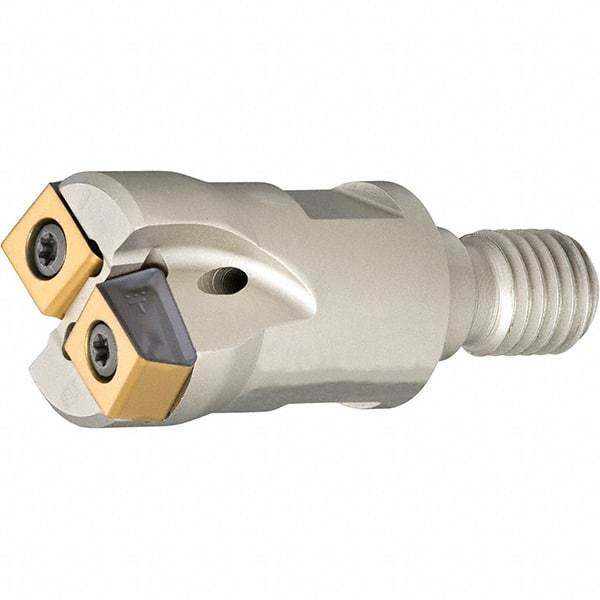

Iscar - 20mm Cut Diam, 2.5mm Max Depth of Cut, Indexable Plunge End Mill - M10 Modular Connection, HTP LNHT 0604 Insert Style, HTP-M-LN06 Toolholder Style, Through Coolant, Series FlexFit, TangPlunge
Item #: 81478505
Brand: Iscar
Model #: 3106099
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.0 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Shank Type | Modular Connection |
| Modular Connection Size | M10 |
| Number of Cutter Inserts | 3 |
| Insert Style | HTP LNHT 0604 |
| Toolholder Style | HTP-M-LN06 |
| Series | FlexFit, TangPlunge |
| Number of Flutes | 3 |
| Overall Length/Projection (Decimal Inch) | 1.1811 |
| Overall Length Projection (mm) | 30.0 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Insert Holding Method | Clamp, Screw |
| Through Coolant | Through Coolant |
| End Mill Type | End Mill |
