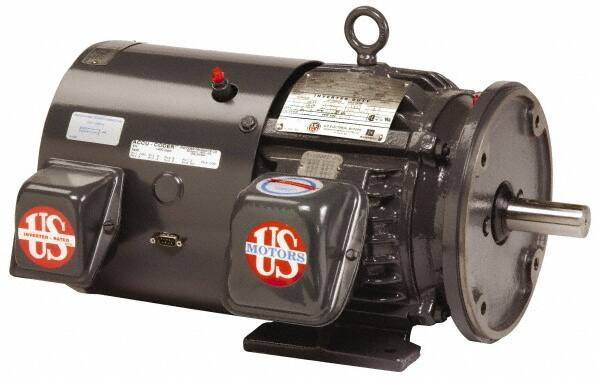

US Motors - 125 hp, TEFC Enclosure, No Thermal Protection, 3,575 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 444 Frame, Rigid Mount, 1 Speed, Ball Bearings, 147 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 81422438
Brand: US Motors
Model #: B125T1CS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 125 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3575 |
| Voltage | 460 |
| Frequency Hz | 60 |
| Frame Size | 444 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Definite Purpose |
| Full Load Amperage | 147 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 47.0000 |
| Full Load Efficiency Rating | 94.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
