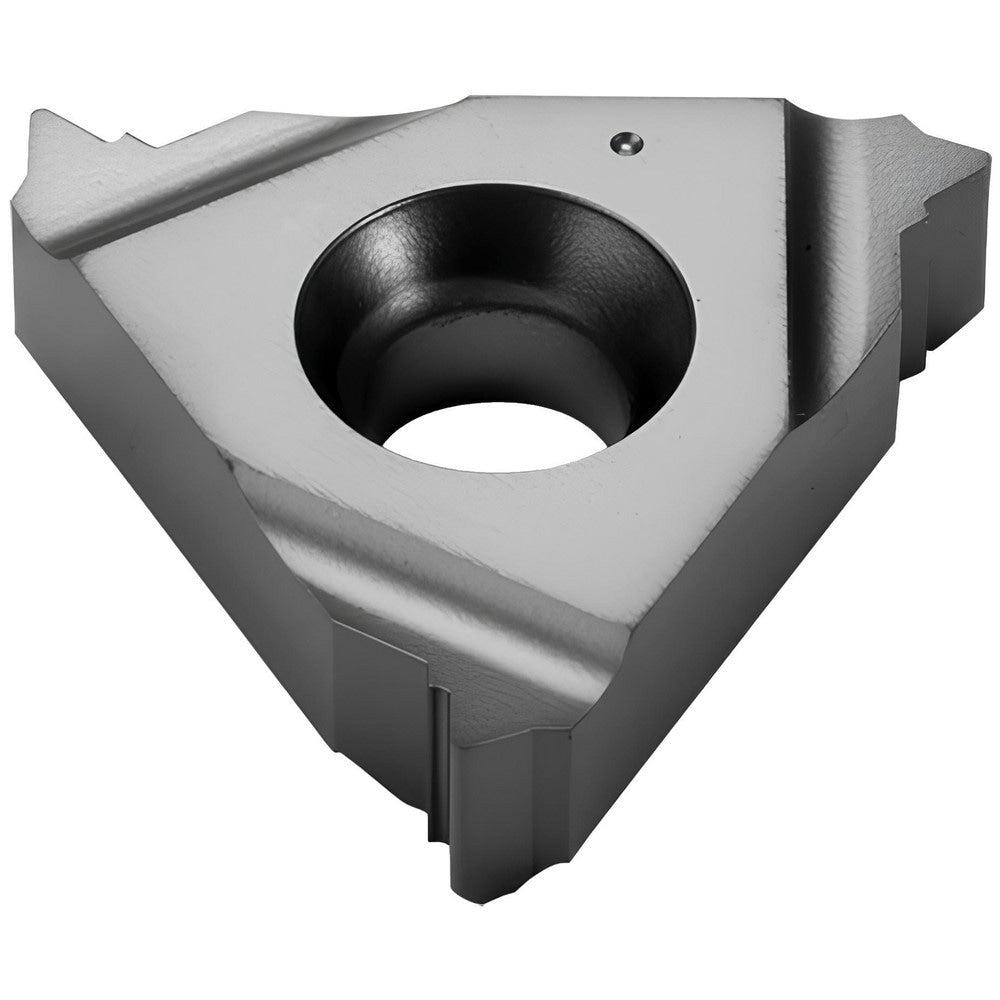

Laydown Threading Insert: 16ER20UNJ TT9030, Carbide
Item #: 64341696
Brand: Ingersoll Cutting Tools
Model #: 5902148
Product Specifications
| Insert Style | ER |
| Insert Size Code | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9030 |
| Threads Per Inch | 20 |
| Thread Type | External |
| Thread Standard | UNJ 60 Degree |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Series | 16ER |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Primary Workpiece Material | Stainless Steel |
| Iso Code | 16ER20UNJ TT9030 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0350 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0310 |
| Number of Teeth Per Side | 1 |
| Manufacturers Catalog Number | 16ER20UNJ |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291804 |
| Insert Style | ER |
| Insert Size Code | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9030 |
| Threads Per Inch | 20 |
| Thread Type | External |
| Thread Standard | UNJ 60 Degree |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Series | 16ER |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Primary Workpiece Material | Stainless Steel |
| Iso Code | 16ER20UNJ TT9030 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.0350 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.0310 |
| Number of Teeth Per Side | 1 |
| Manufacturers Catalog Number | 16ER20UNJ |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291804 |
| MSC Part # | 64341696 |
| Mfr Part # | 5902148 |
