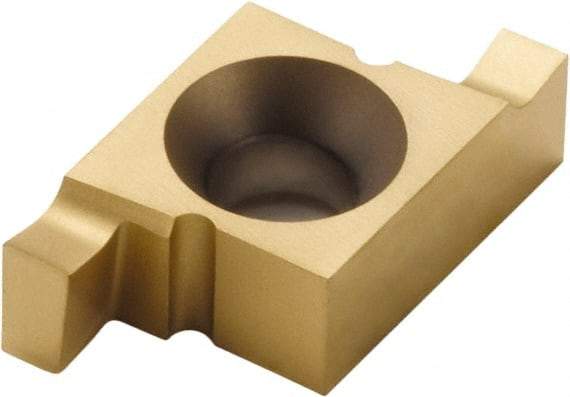

Seco - 26326NR FG Grade CP500, Carbide Grooving Insert - Right Hand, TiAlN/TiN Finish
Item #: 81241663
Brand: Seco
Model #: 77972
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 26NR |
| Insert Size | 263 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Insert Seat Size | 26 |
| Chipbreaker | FG |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Overall Length (mm) | 26.00 |
| Overall Length (Decimal Inch) | 1.0236 |
| Series | Snap Tap |
| Overall Width (mm) | 15.88 |
| Overall Width (Decimal Inch) | 0.6252 |
