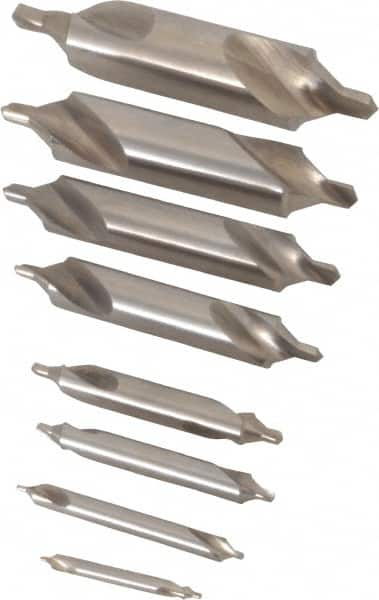

Chicago-Latrobe - 8 Piece, #11 to 18, 1/8 to 3/4" Body Diam, 3/64 to 1/4" Point Diam, Bell Edge, High Speed Steel Combo Drill & Countersink Set - 60° Incl Angle, 1/8 to 3-1/2" OAL, Double End, 217B Series Compatibility
Item #: 81109621
Brand: Chicago-Latrobe
Model #: 69879
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Trade Size | #11 |
| Maximum Trade Size | #18 |
| Minimum Body Diameter (Decimal Inch) | 0.1250 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Minimum Drill Point Diameter (Inch) | 3/64 |
| Maximum Drill Point Diameter (Inch) | 1/4 |
| Maximum Drill Point Diameter (Decimal Inch) | 0.2500 |
| Minimum Overall Length (Inch) | 1-1/4 |
| Maximum Overall Length (Inch) | 3-1/2 |
| End Type | Double |
| Cutting Edge Style | Bell |
| Combination Drill and Countersink Material | High Speed Steel |
| Body Diameter (Decimal Inch) | 0.1250; 0.1875; 0.2500; 0.3125; 0.4375; 0.5000; 0.6250; 0.7500 |
| Drill Point Diameter (Inch) | 3/64; 1/16; 3/32; 7/64; 5/32; 3/16; 7/32; 1/4 |
| Overall Length (Inch) | 1-1/4; 1-7/8; 2; 2-1/8; 2-3/4; 3; 3-1/4; 3-1/2 |
| Included Angle | 60 |
| Bell Diameter (Decimal Inch) | 0.10; 0.15; 0.20; 0.25; 0.35; 0.40; 0.50; 0.60 |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Countersink Application | Countersinking |
| Long Length Tool | No |
| Aircraft-Style | No |
| Insertable Cutter Head | No |
| Set Includes | (8) Combination Drill and Countersinks; Storage Case |
| Number of Pieces | 8 |
| Storage Unit Type | Pouch |
| Storage Unit Material | Plastic |
| Series/List | 217B |
