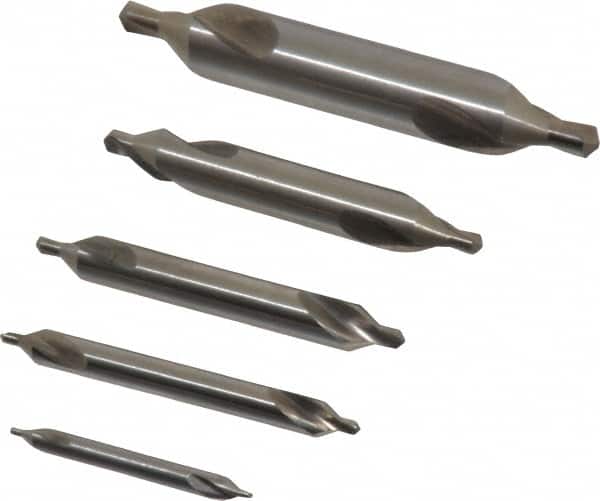

Chicago-Latrobe - 5 Piece, #1 to 5, 1/8 to 7/16" Body Diam, 3/64 to 3/16" Point Diam, Plain Edge, High Speed Steel Combo Drill & Countersink Set - 60° Incl Angle, 1/8 to 2-3/4" OAL, Double End, 217 Series Compatibility
Item #: 81109605
Brand: Chicago-Latrobe
Model #: 56710
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Trade Size | #1 |
| Maximum Trade Size | #5 |
| Minimum Body Diameter (Inch) | 1/8 |
| Maximum Body Diameter (Inch) | 7/16 |
| Minimum Drill Point Diameter (Inch) | 3/64 |
| Maximum Drill Point Diameter (Inch) | 3/16 |
| Maximum Drill Point Diameter (Decimal Inch) | 0.1875 |
| Minimum Overall Length (Inch) | 1-1/4 |
| Maximum Overall Length (Inch) | 2-3/4 |
| End Type | Double |
| Cutting Edge Style | Plain |
| Combination Drill and Countersink Material | High Speed Steel |
| Body Diameter (Inch) | 1/8; 3/16; 1/4; 5/16; 7/16 |
| Drill Point Diameter (Inch) | 3/64; 5/64; 7/64; 1/8; 3/16 |
| Drill Point Diameter (Decimal Inch) | 0.0469; 0.0781; 0.1094; 0.1250; 0.1875 |
| Overall Length (Inch) | 1-1/4; 1-7/8; 2; 2-1/8; 2-3/4 |
| Included Angle | 60 |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Countersink Application | Countersinking |
| Long Length Tool | No |
| Aircraft-Style | No |
| Insertable Cutter Head | No |
| Set Includes | (5) Combination Drill and Countersinks; Storage Case |
| Number of Pieces | 5 |
| Storage Unit Type | Pouch |
| Storage Unit Material | Plastic |
| Series/List | 217 |
