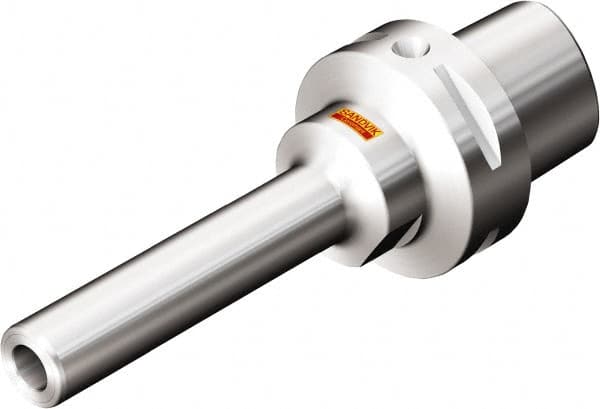

Sandvik Coromant - C5 Modular Connection, 12mm Hole Diam, Hydraulic Tool Holder/Chuck - 22mm Nose Diam, 103mm Projection, 41mm Clamp Depth, 28,000 RPM, Through Coolant
Item #: 81058596
Brand: Sandvik Coromant
Model #: 6255477
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C5 |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Nose Diameter (Decimal Inch) | 0.8661 |
| Nose Diameter (mm) | 22.00 |
| Projection (Decimal Inch) | 4.0551 |
| Projection (mm) | 103.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 41.00 |
| Clamping Depth (Decimal Inch) | 1.4173 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Balanced to (RPM) | 28000 |
