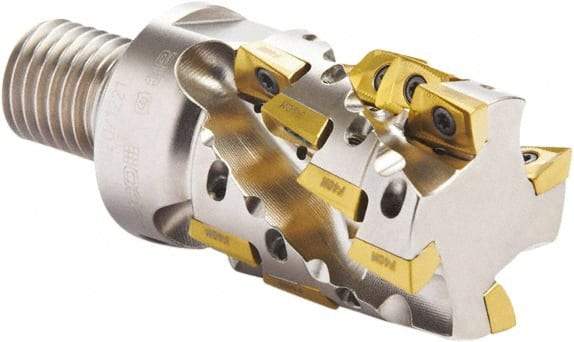

Seco - 1" Cut Diam, 35mm Max Depth of Cut, 1" Shank Diam, 107.95mm OAL, Indexable Square Shoulder End Mill - Cylindrical Shank, 90° Lead Angle, Series R217.69
Item #: 81041147
Brand: Seco
Model #: 81638
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 107.95 |
| Overall Length/Projection (Decimal Inch) | 4.2500 |
| Lead Angle | 90 |
| Series | R217.69 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 35.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.69 |
| Number of Flutes | 3 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Shank Length (Decimal Inch) | 2.2823 |
| Shank Length (mm) | 57.97 |
| Maximum RPM | 23500 |
