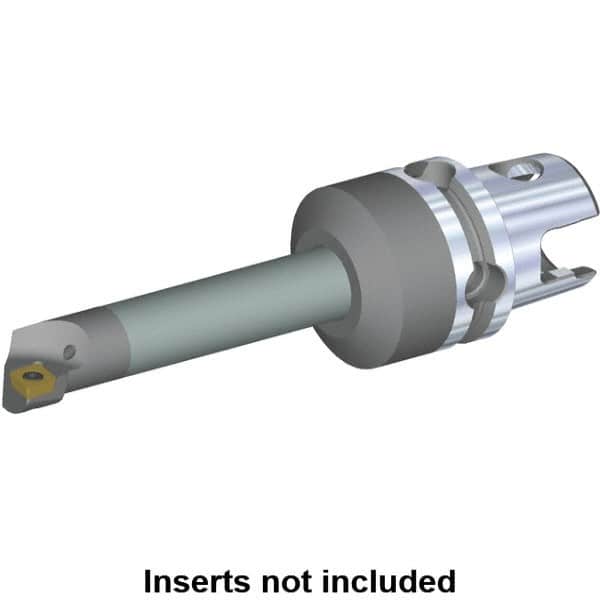

Kennametal - Right Hand Cut, 20mm Min Bore Diam, Size KM50 Carbide Modular Boring Cutting Unit Head - 3.1496" Max Bore Depth, Through Coolant, Compatible with CP..
Item #: 81038564
Brand: Kennametal
Model #: 3789880
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50 |
| Series Name | KM Micro |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 80.00 |
| Maximum Bore Depth (Decimal Inch) | 3.1496 |
| Insert Style | CP.. |
| Head Length/Projection (mm) | 110.00 |
| Head Length/Projection (Decimal Inch) | 4.3307 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Neck Diameter (mm) | 16.00 |
| Neck Diameter (Decimal Inch) | 0.6299 |
| Complete Insert Compatibility | CP..09T308; CP..3252 |
