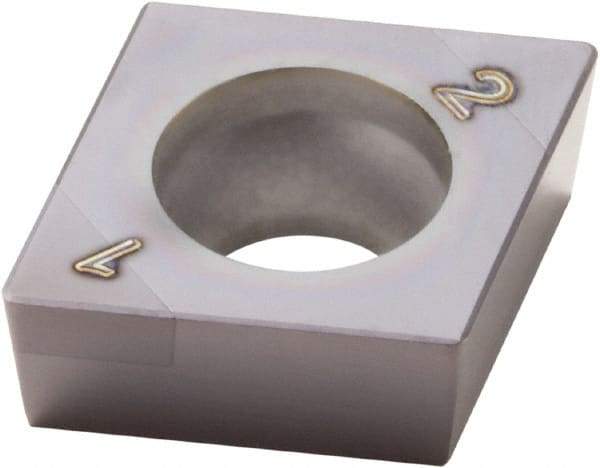

Seco - CCGW21.52 WZ Grade CBN060K PCBN Turning Insert - TiAlSiN Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 81032781
Brand: Seco
Model #: 81786
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGW |
| Insert Size | 21.52 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | CBN060K |
| Coating | TiAlSiN |
| Chip Breaker | WZ |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCGW 21.52S-L1-WZP-B |
| Included Angle | 80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| MultiUseTool | No |
| Shape | Diamond |
