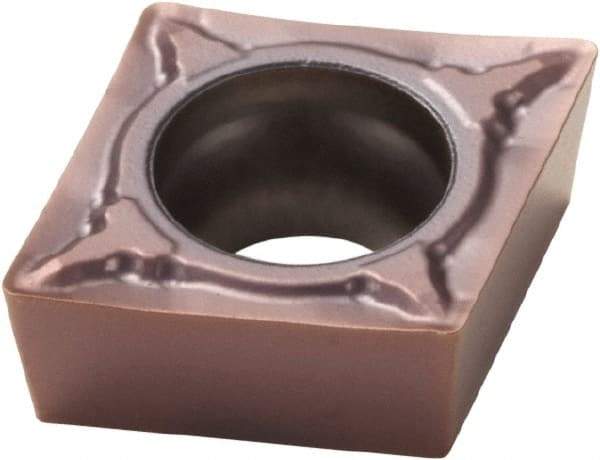

Seco - CCMT21.51 F1 Grade TH1000 Carbide Turning Insert - TiAlSiN Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 81032732
Brand: Seco
Model #: 18950
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TH1000 |
| Coating | TiAlSiN |
| Material Grade | Super-Fine Grain |
| Chip Breaker | F1 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCMT 21.51-F1 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| MultiUseTool | No |
| Shape | Diamond |
