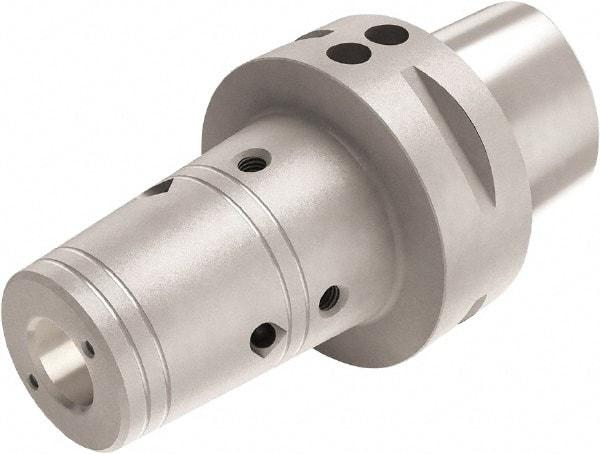

Seco - 25mm Hole Diam, C8 Modular Connection Shrink Fit Tool Holder & Adapter - 100mm Projection, 48mm Nose Diam, 58.5mm Clamping Depth, 30,000 RPM, Through Coolant
Item #: 81024200
Brand: Seco
Model #: 84273
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C8 |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Hole Diameter (mm) | 25.00 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 48.00 |
| Nose Diameter (Decimal Inch) | 1.8898 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 58.50 |
| Clamping Depth (Decimal Inch) | 2.3031 |
| Overall Length (mm) | 148.00 |
| Overall Length (Decimal Inch) | 5.8268 |
| Balanced to (RPM) | 30000 |
