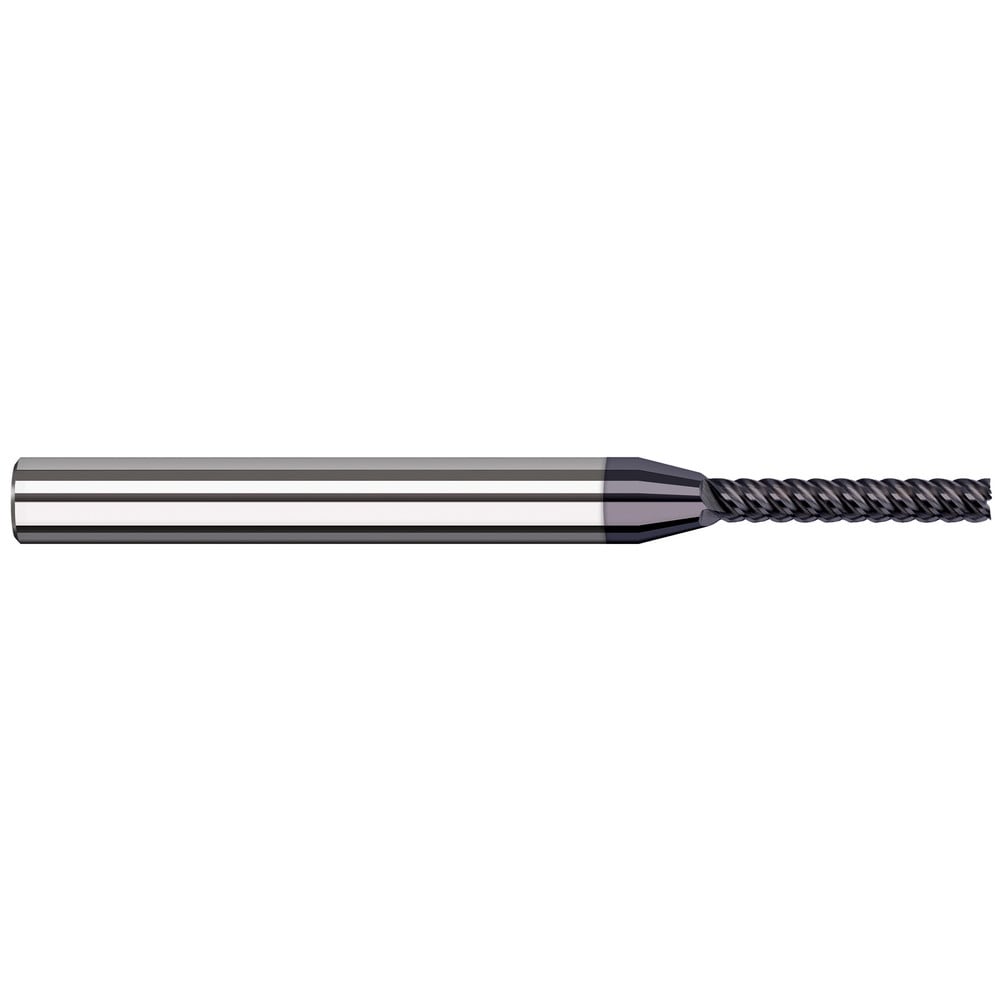

Square End Mill: 1/16" Dia, 7/16" LOC, 5 Flute, Solid Carbide
Item #: 05000112
Brand: Harvey Tool
Model #: 726262-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0620 |
| Mill Diameter (Inch) | 1/16 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.4370 |
| Length of Cut (Inch) | 7/16 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN Nano |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 44 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Coating/Finish | AlTiN Nano |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | Variable Helix End Mills for Medium Alloy Steels - Finishers - Square |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
