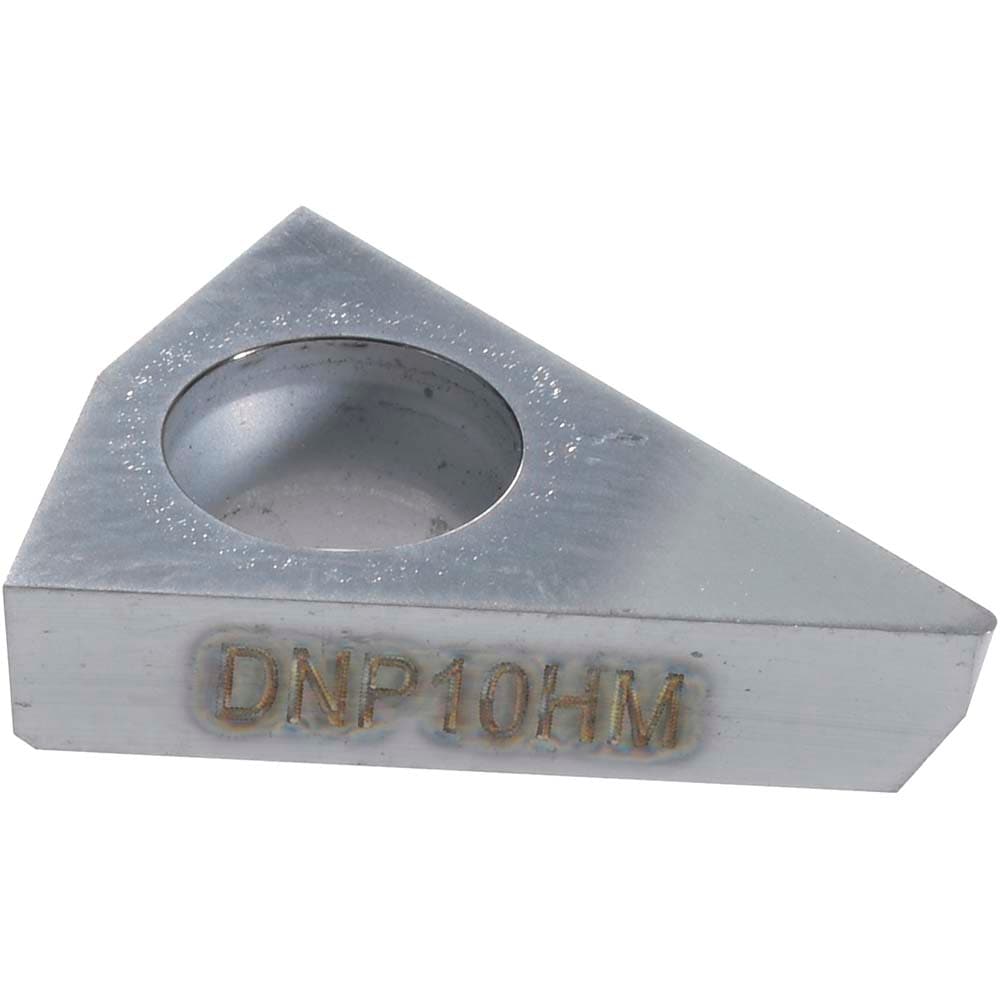

Milling Insert: TDEX-17T304-XDEN-DNP10HM DNP10HM, Solid Carbide
Item #: 47888300
Brand: Dorian Tool
Model #: 73310195518
Product Specifications
| Insert Style | TDEX |
| Insert Size | 17 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | DNP10HM |
| Corner Radius (Decimal Inch) | 0.0150 |
| Corner Radius (mm) | 0.38 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1570 |
| Thickness (mm) | 3.99 |
| Relief Angle | 11.00 |
| Insert Size Code | 17T304 |
| Material Grade | K10 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.6700 |
| Inscribed Circle (mm) | 17.02 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Insert Hand | Neutral |
| Series | TDEX |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.18 |
| Hole Diameter (Decimal Inch) | 0.1799 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | TDEX-17T304-XDEN-DNP10HM |
| Iso Code | TDEX-17T304-XDEN-DNP10HM |
| Manufacturers Catalog Number | TDEX-17T304-XDEN-DNP10HM |
| Chip Breaker | DNP |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 45 |
| Length (mm) | 12.15 |
| Width (Decimal Inch - 4 Decimals) | 0.4783 |
| Width (mm - 2 Decimals) | 12.15 |
| Length (Decimal Inch - 4 Decimals) | 0.4783 |
