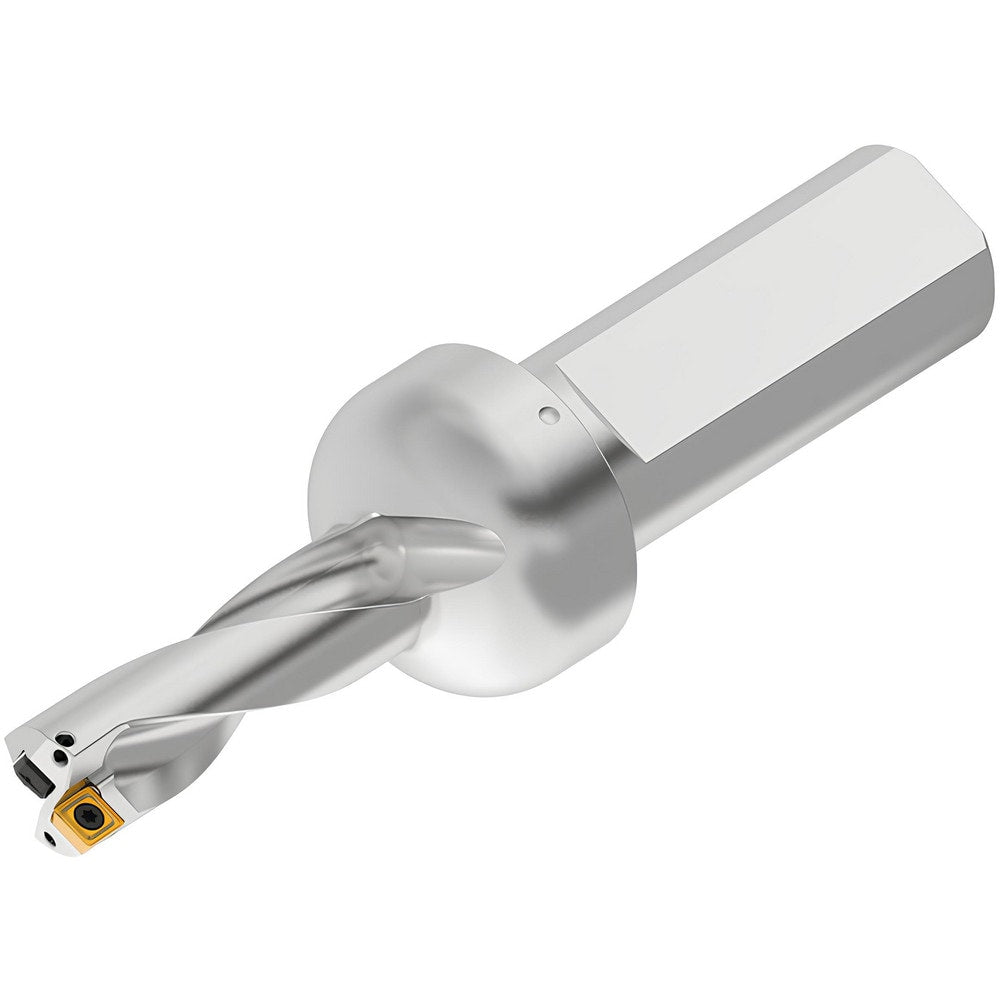

Indexable Insert Drill: DFPR220R3WB25M, 23.00 mm Max Dia, 66.00 mm Max Depth, 3xD, 25.00 mm Shank Dia
Item #: 02617363
Brand: Kennametal
Model #: 7030362
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 23.00 |
| Maximum Drill Depth (mm) | 66.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 070305; 080304 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DFPR |
| Flute Length (mm) | 66.00 |
| Body Length | 84.00 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 8.04x2.8; 7.71x2.8 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR080304__I; DFPR070305__O |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M2.5-0.45x5.7T8 |
| Coolant Through | Yes |
