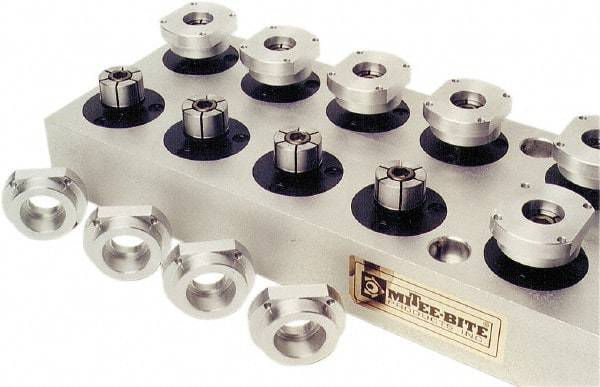

Mitee-Bite - 0.9 to 1.39" Expansion Diam, 5,900 Lb Holding Force, M4 Mounting Screw, M12 Center Screw, Steel ID Expansion Clamps - 2.205" Flange Diam, 1/4" Flange Thickness, 1.79" Mount Hole Diam, 3 Mount Holes, 1-1/4" Overall Height, 120 Ft/Lb Torque
Item #: 80751597
Brand: Mitee-Bite
Model #: 38250
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Flange Diameter (Decimal Inch) | 2.2050 |
| Maximum Expansion Diameter (Decimal Inch) | 1.3900 |
| Minimum Expansion Diameter (Decimal Inch) | 0.9000 |
| Holding Force (Lb.) | 5900.00 |
| Center Screw Thread Size | M12 |
| Mounting Screw Thread Size | M4 |
| Material | Steel |
| Mount Hole Diameter (Decimal Inch) | 1.7900 |
| Flange Thickness (Decimal Inch) | 0.2500 |
| Expansion Height (Decimal Inch) | 0.8100 |
| Height Above Flange (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.2500 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.7100 |
| Torque (Ft/Lb) | 120.00 |
