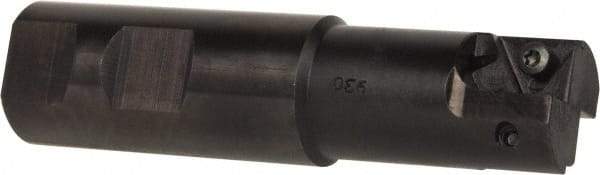

Kennametal - 1.024" Cut Diam, 1.69" Max Depth of Cut, 1" Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 16, 0.63" Insert Size, 2 Inserts, Toolholder Style K102, 4.02" OAL
Item #: 80748452
Brand: Kennametal
Model #: 1280517
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0240 |
| Maximum Hole Depth (Decimal Inch) | 1.6900 |
| Insert Style | STN 16 |
| Insert Size (Decimal Inch) | 0.6300 |
| Toolholder Style | K102 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.0200 |
| Number of Threading Inserts | 2 |
| Thread Type | Internal/External |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.8910 |
| Insert Inscribed Circle (Inch) | 3/8 |
