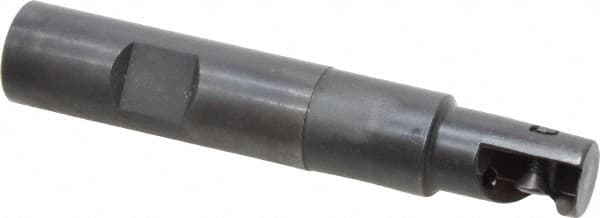

Kennametal - 0.61" Cut Diam, 0.87" Max Depth of Cut, 5/8" Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 16, 0.63" Insert Size, 1 Insert, Toolholder Style K061, 3.56" OAL
Item #: 80748411
Brand: Kennametal
Model #: 1280491
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6100 |
| Maximum Hole Depth (Decimal Inch) | 0.8700 |
| Insert Style | STN 16 |
| Insert Size (Decimal Inch) | 0.6300 |
| Toolholder Style | K061 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 3.5600 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.4940 |
| Insert Inscribed Circle (Inch) | 3/8 |
