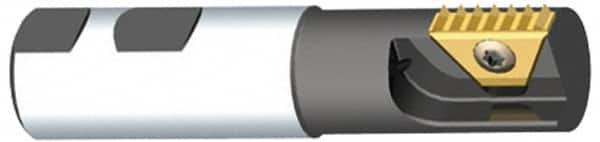

Kennametal - 0.354" Cut Diam, 0.67" Max Depth of Cut, 3/4" Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 10, 0.41" Insert Size, 1 Insert, Toolholder Style K035, 3.3" OAL
Item #: 80748403
Brand: Kennametal
Model #: 1280477
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3540 |
| Maximum Hole Depth (Decimal Inch) | 0.6700 |
| Insert Style | STN 10 |
| Insert Size (Decimal Inch) | 0.4100 |
| Toolholder Style | K035 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 3.3000 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.2640 |
| Insert Inscribed Circle (Inch) | 15/64 |
