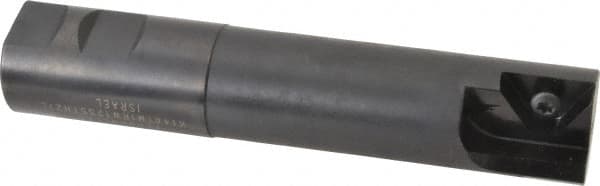

Kennametal - 1.46" Cut Diam, 4" Max Depth of Cut, 1-1/4" Shank Diam, Internal/External Indexable Thread Mill - Insert Style STN 27, 1.06" Insert Size, 1 Insert, Toolholder Style K146, 6.33" OAL
Item #: 80748387
Brand: Kennametal
Model #: 1280579
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.4600 |
| Maximum Hole Depth (Decimal Inch) | 4.0000 |
| Insert Style | STN 27 |
| Insert Size (Decimal Inch) | 1.0600 |
| Toolholder Style | K146 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.3300 |
| Number of Threading Inserts | 1 |
| Thread Type | Internal/External |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 1.2200 |
| Insert Inscribed Circle (Inch) | 5/8 |
