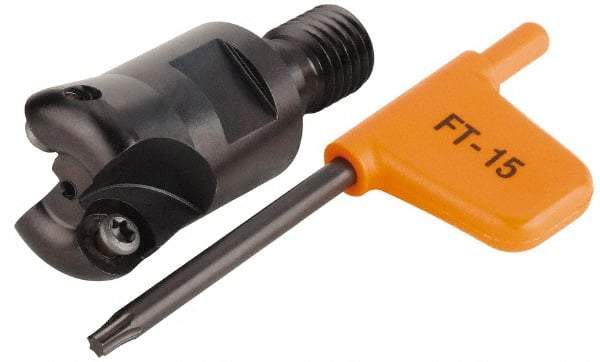

Kennametal - 19.05mm Cutting Diam, 3/4" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RDHX 1003M0S Insert, KDM Toolholder
Item #: 80700016
Brand: Kennametal
Model #: 2511350
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.05 |
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M10 |
| Number of Cutter Inserts | 2 |
| Insert Style | RDHX 1003M0S |
| Toolholder Style | KDM |
| Series | KDM |
| Overall Length (mm) | 29.97 |
| Overall Length (Decimal Inch) | 1.1800 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 9.04 |
| Head Length (mm) | 29.97 |
| Head Length (Decimal Inch) | 1.1800 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Modular Connection Size | M10 |
