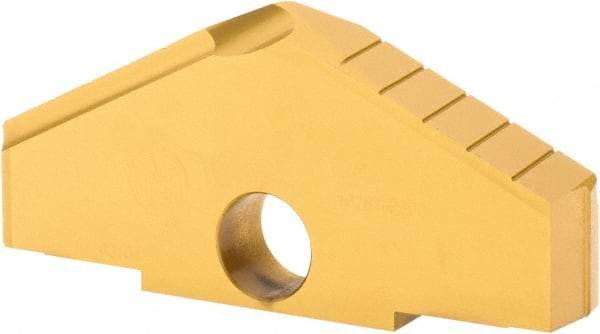

Allied Machine and Engineering - 5" Diam x 11/16" Thick, Seat Code H, 130° Included Angle Spade Drill Insert - TiN Coated, High Speed Steel, Series H
Item #: 80698640
Brand: Allied Machine and Engineering
Model #: 1028T-0500
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Series Name | H |
| Diameter (Decimal Inch) | 5.0000 |
| Diameter (Inch) | 5 |
| Series Code/Seat Size | H |
| Material | High Speed Steel |
| Coating | TiN |
| Thickness (Decimal Inch) | 0.6875 |
| Included Angle Degree | 130 |
| Height (Inch) | 2-3/16 |
