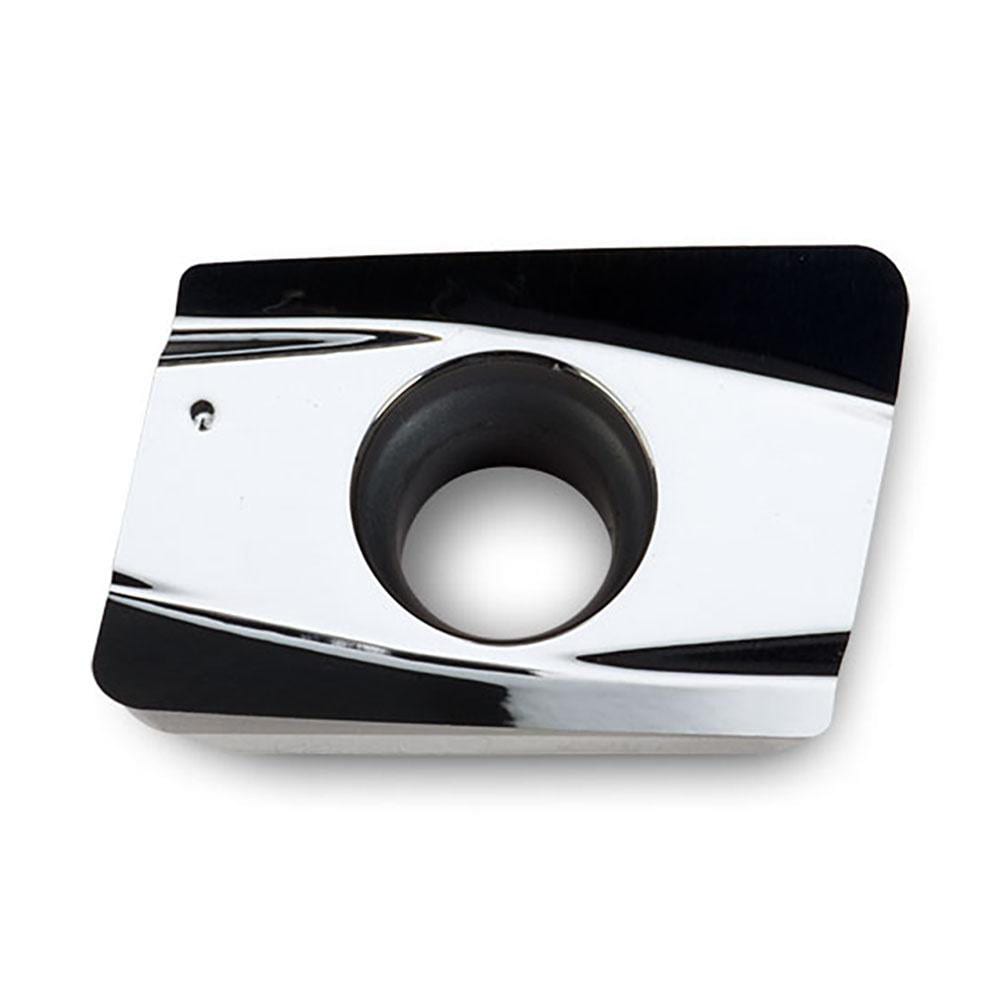

Milling Insert: BOCT09T308FR-P IN10K IN10K, Solid Carbide
Item #: 63021257
Brand: Ingersoll Cutting Tools
Model #: 5812703
Product Specifications
| Insert Style | BOCT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN10K |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1440 |
| Coating/Finish | Bright/Uncoated |
| Insert Size Code | 09T308 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.2600 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Series | BOCT |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.3500 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | BOCT09T308FR-P I IN10K |
| Iso Code | BOCT09T308FR-P IN10K |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5812703 |
| Cutter Series Compatibility | 12L1P; 2J1P; 12J1P; 22J3P |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 82 |
| Width (Decimal Inch - 4 Decimals) | 0.2600 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.3500 |
| Insert Style | BOCT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN10K |
| Corner Radius (Decimal Inch) | 0.0310 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1440 |
| Coating/Finish | Bright/Uncoated |
| Insert Size Code | 09T308 |
| Material Grade | Fine Grain |
| Inscribed Circle (Decimal Inch) | 0.2600 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.2000 to 0.3000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Series | BOCT |
| Coating Process | Uncoated |
| Cutting Edge Effective Length (Decimal Inch) | 0.3500 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | BOCT09T308FR-P I IN10K |
| Iso Code | BOCT09T308FR-P IN10K |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5812703 |
| Cutter Series Compatibility | 12L1P; 2J1P; 12J1P; 22J3P |
| Chip Breaker | P |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 82 |
| Width (Decimal Inch - 4 Decimals) | 0.2600 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.3500 |
| MSC Part # | 63021257 |
| Mfr Part # | 5812703 |
