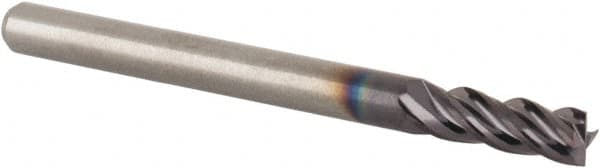

Square End Mill: 1/8'' Dia, 3/8'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 4 Flutes, Solid Carbide Single End, TiAlN Finish, Spiral Flute, Variable Helix, Centercutting, RH Cut, RH Flute, Series 177
Item #: 80591993
Brand: M.A. Ford?
Model #: 17712510A
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | TiAlN |
| Overall Length (Inch) | 1-1/2 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.3000 - 0.5000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.3750 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | +0/-0.00031 in |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Series | 177 |
