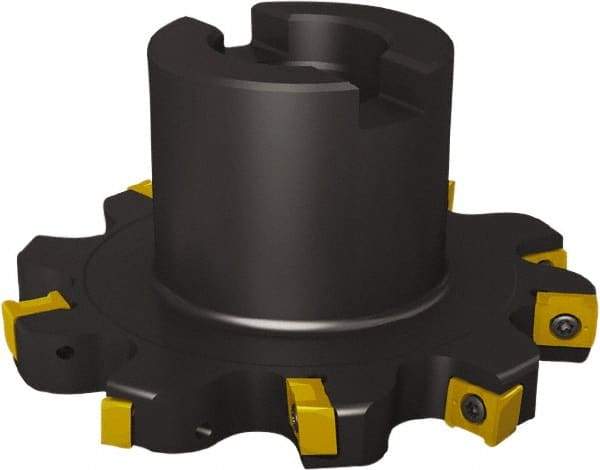

Seco - Shell Mount Connection, 5/16" Cutting Width, 1.059" Depth of Cut, 4" Cutter Diam, 1" Hole Diam, 5 Tooth Indexable Slotting Cutter - R335.18 Toolholder, LNK.. 05.. Insert, Right Hand Cutting Direction
Item #: 80386766
Brand: Seco
Model #: 29087
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Connection Type | Shell Mount |
Cutting Width (Decimal Inch) | 0.3120 |
Maximum Depth of Cut (mm) | 26.90 |
Maximum Depth of Cut (Decimal Inch) | 1.0590 |
Cutter Diameter (Decimal Inch) | 4.0000 |
Hole Diameter (Decimal Inch) | 1.0000 |
Number of Teeth | 5 |
Toolholder Style | R335.18 |
Series | R335.18 |
Insert Style | LNK.. 05.. |
Staggered Tooth | Yes |
Number of Cutter Inserts | 10 |
Cutting Direction | Right Hand |
Insert Holding Method | Screw |
Maximum RPM | 9700 |
Minimum Cutting Width (Decimal Inch) | 0.3120 |
Maximum Cutting Width (Decimal Inch) | 0.3120 |
Hub Diameter (Decimal Inch) | 1.8800 |
Radius | No |
Complete Insert Compatibility1 | LNKT 050404PPN4-E05; LNKT 050404PPTN4-M06; LNKT 050408PPN4-E05; LNKT 050408PPTN4-M06; LNKT 050416PPTN4-M06; LNKT 050420PPTN4-M06; LNKT 050424PPTN2-M06; LNKT 050431PPTL1-M06; LNKT 050431PPTR1-M06; LNKW 050404PPN4-MD07; LNKW 050408PPN4-MD07 |
