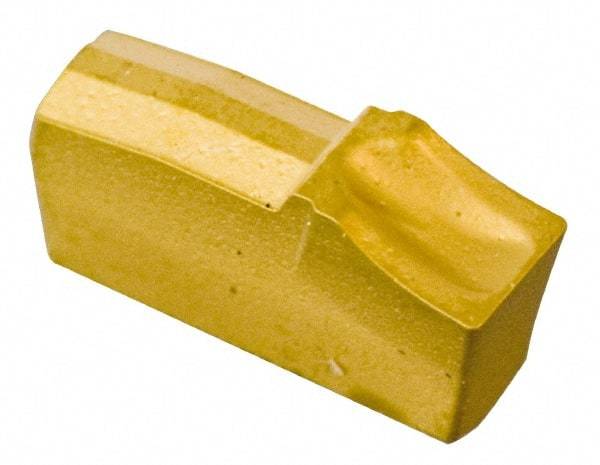

Kennametal - A2016 CF KT315 Grade, 0.063" Cutting Width, Cermet Cutoff Insert - 0° Neutral Lead Angle, 0.0059" Cnr Rad, TiN/TiCN/TiN Coated
Item #: 80091838
Brand: Kennametal
Model #: 1790143
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal. It can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | Cermet |
| Insert Style | A2 |
| Insert Size | 016 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 1.60 |
| Cutting Width (Decimal Inch) | 0.0630 |
| Material Grade | C3/C7 |
| Manufacturer's Grade | KT315 |
| Coating | TiN/TiCN/TiN |
| Series | A2 |
| Relief Angle | 2 |
| Chipbreaker | CF |
| Multi-Use Application | Cut-Off; Grooving |
| Coating Process | PVD |
| Cutting Height (mm) | 3.70 |
| Cutting Height (Decimal Inch) | 0.1457 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Corner Radius (mm) | 0.15 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 1 |
