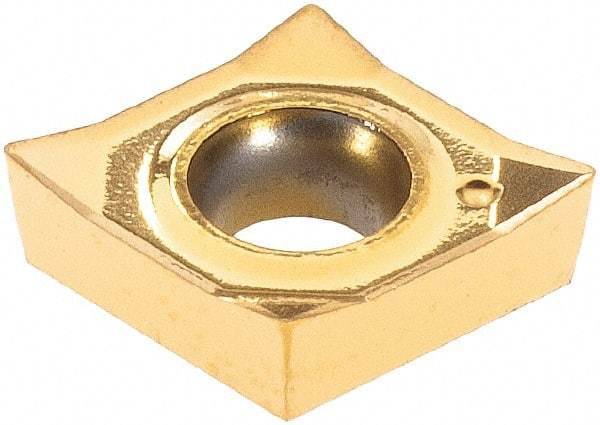

Value Collection - CCGT21.50.5 FP Grade PVD1 Cermet Turning Insert - 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 80040363
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 21.50.5 |
| Material | Cermet |
| Length (mm) | 6.40 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | PVD1 |
| Chip Breaker | FP |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
