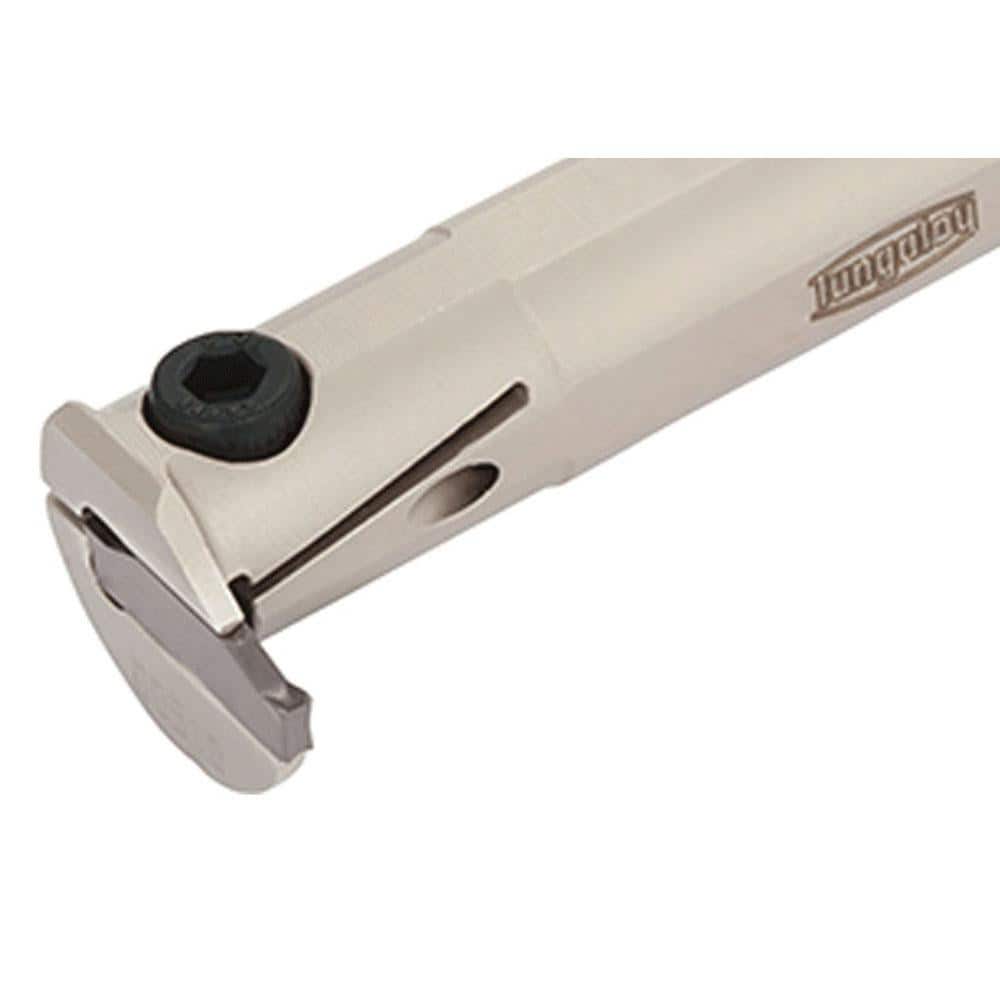

Indexable Grooving Toolholder: CTIR20-6T10-D25, 0.3930″ Max Depth, Uses 6 Inserts, 1.1020″ Shank Height, Through Coolant
Item #: 79995072
Brand: Tungaloy
Model #: 6880711
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 6 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3930 |
| Minimum Groove Width (Decimal Inch) | 0.3930 |
| Toolholder Style | CTI |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 6 |
| Shank Height (Decimal Inch) | 1.1020 |
| Series | CTI |
| Shank Length (Decimal Inch) | 10.0000 |
| Shank Length (Inch) | 10 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Minimum Hole Diameter (Decimal Inch) | 1.5630 |
| Head Height (Decimal Inch) | 1.1020 |
| Head Length (Decimal Inch) | 2.3620 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
