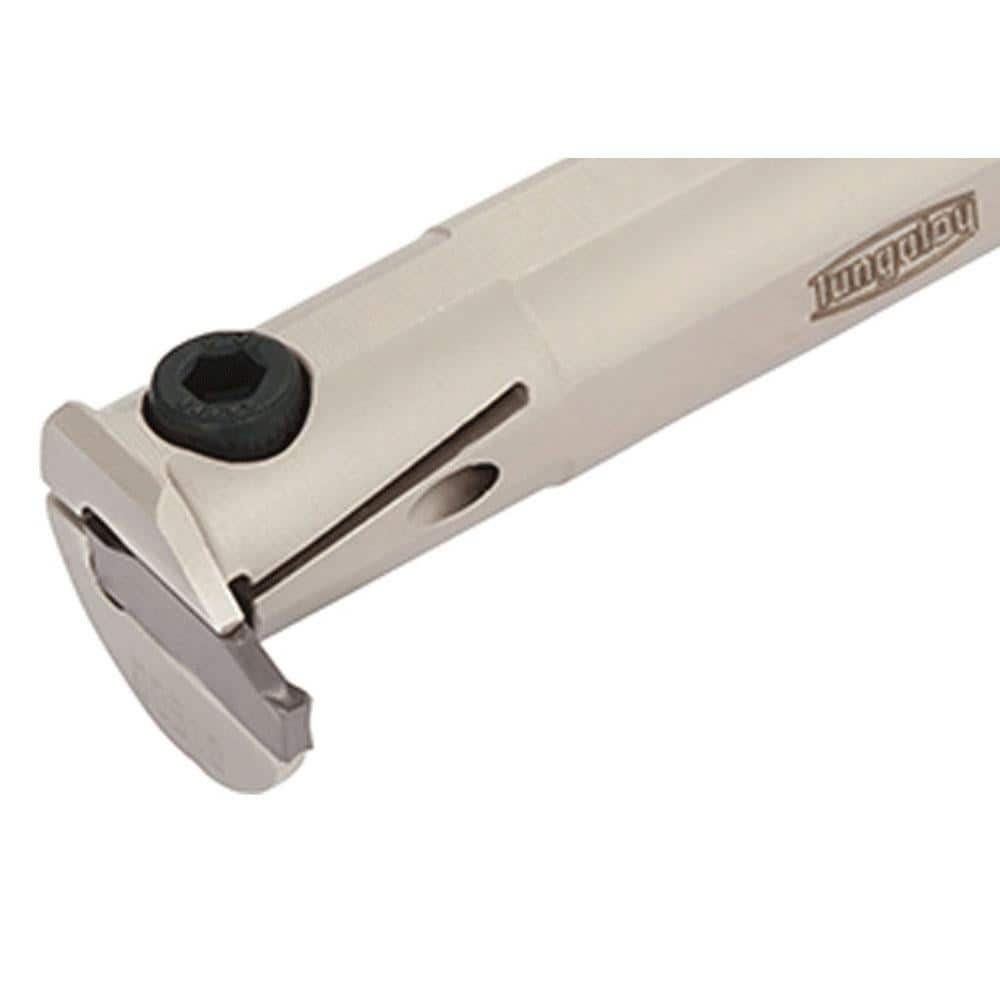

Indexable Grooving Toolholder: CTIL24-8T05-D26, 0.1570″ Max Depth, Uses 8 Inserts, 1.4020″ Shank Height, Through Coolant
Item #: 79982476
Brand: Tungaloy
Model #: 6880716
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 8 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Toolholder Style | CTI |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 8 |
| Shank Height (Decimal Inch) | 1.4020 |
| Series | CTI |
| Shank Length (Decimal Inch) | 12.0000 |
| Shank Length (Inch) | 12 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (Decimal Inch) | 0.9820 |
| Minimum Hole Diameter (Decimal Inch) | 1.6250 |
| Head Height (Decimal Inch) | 1.4020 |
| Head Length (Decimal Inch) | 2.5590 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
