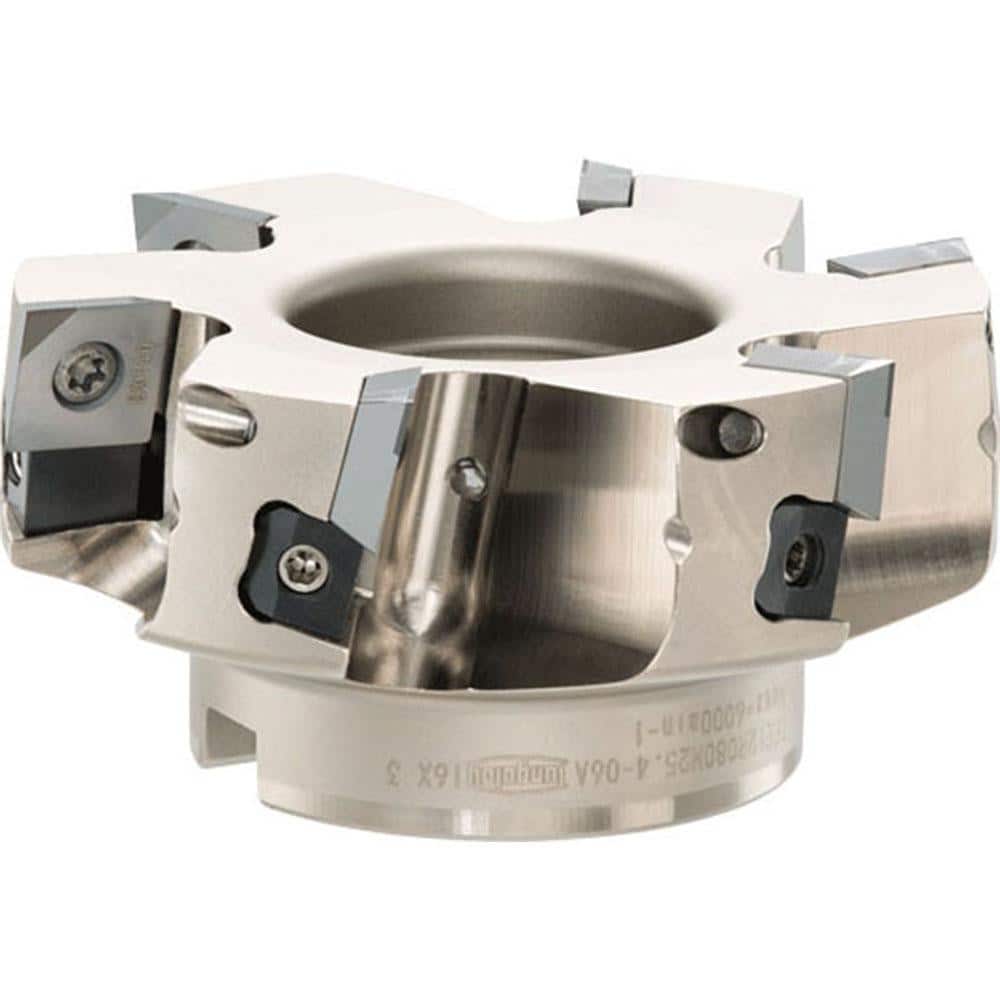

Indexable Square-Shoulder Face Mill: TFE12R100M27.0E08A, 27.0000″ Arbor Hole Dia, Uses 8, SEGW Inserts, Through Coolant, Series TFE
Item #: 79977989
Brand: Tungaloy
Model #: 6748507
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Inch) | 27 |
| Arbor Hole Diameter (Decimal Inch) | 27.0000 |
| Compatible Insert Size Code | SEGW |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | TFE |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Radial); Positive (Axial) |
| Rake Angle | 13.0 |
| Series | TFE |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 12.4000 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 55.0000 |
| Hub Diameter (Inch) | 55 |
| Tool Application | Facing |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
