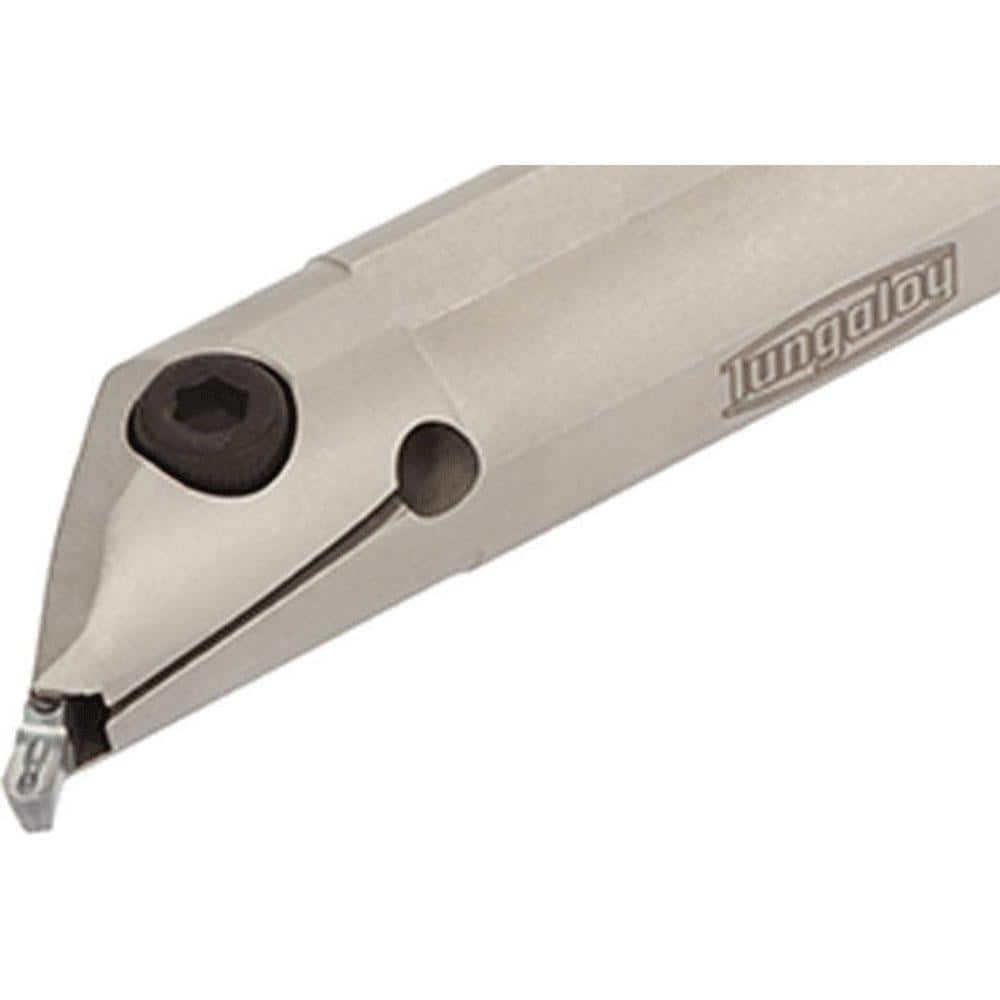

Indexable Grooving Toolholder: CGIUR20-3T02-D380, Uses 3 Inserts, No
Item #: 79973293
Brand: Tungaloy
Model #: 6860774
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 3 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 2.80 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | CGIU |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 3 |
| Shank Height (mm) | 19.00 |
| Series | CGIU |
| Shank Length (mm) | 160.00 |
| Overall Length (mm) | 160.00 |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (mm) | 12.80 |
| Minimum Hole Diameter (mm) | 38.00 |
| Minimum Hole Diameter (Decimal Inch) | 38.0000 |
| Head Height (Decimal Inch) | 19.0000 |
| Head Height (Inch) | 19 |
| Head Height (mm) | 19.00 |
| Head Length (mm) | 160.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
