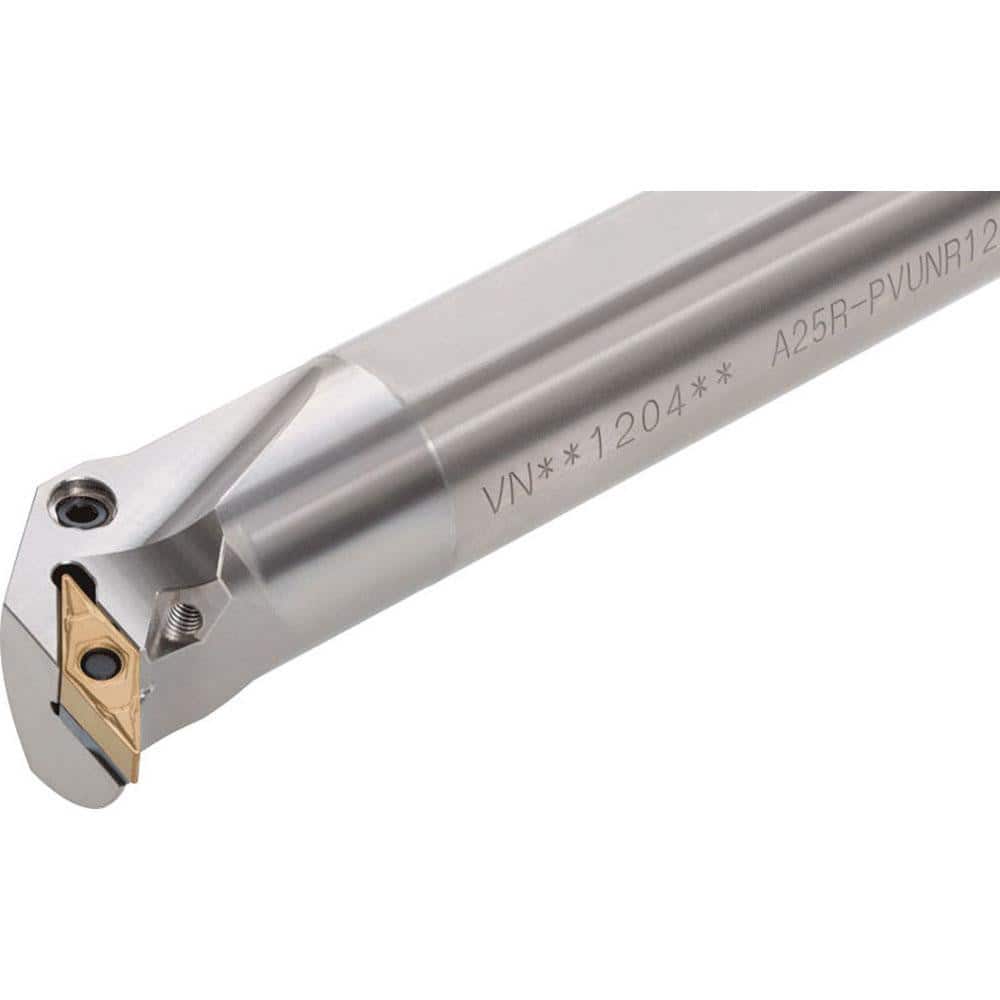

Indexable Boring Bar: A20-PVUNR2.33-D26, 93.00° N/A Steel 14.0000″ OAL, Lever,
Item #: 79971016
Brand: Tungaloy
Model #: 6759397
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.6430 |
| Maximum Bore Depth (Decimal Inch) | 5.0000 |
| Maximum Bore Depth (Inch) | 5 |
| Toolholder Style | PVUN |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (mm) | 14.00 |
| Overall Length (Inch) | 14 |
| Compatible Insert Size Code | 2.33 |
| Insert Holding Method | Lever |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | -10.00 |
| Lead Angle | 93.00 |
| Series | PVUN |
| Insert Inscribed Circle (Inch) | 9/32 |
| Insert Inscribed Circle (Decimal Inch) | 0.2810 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.8590 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
