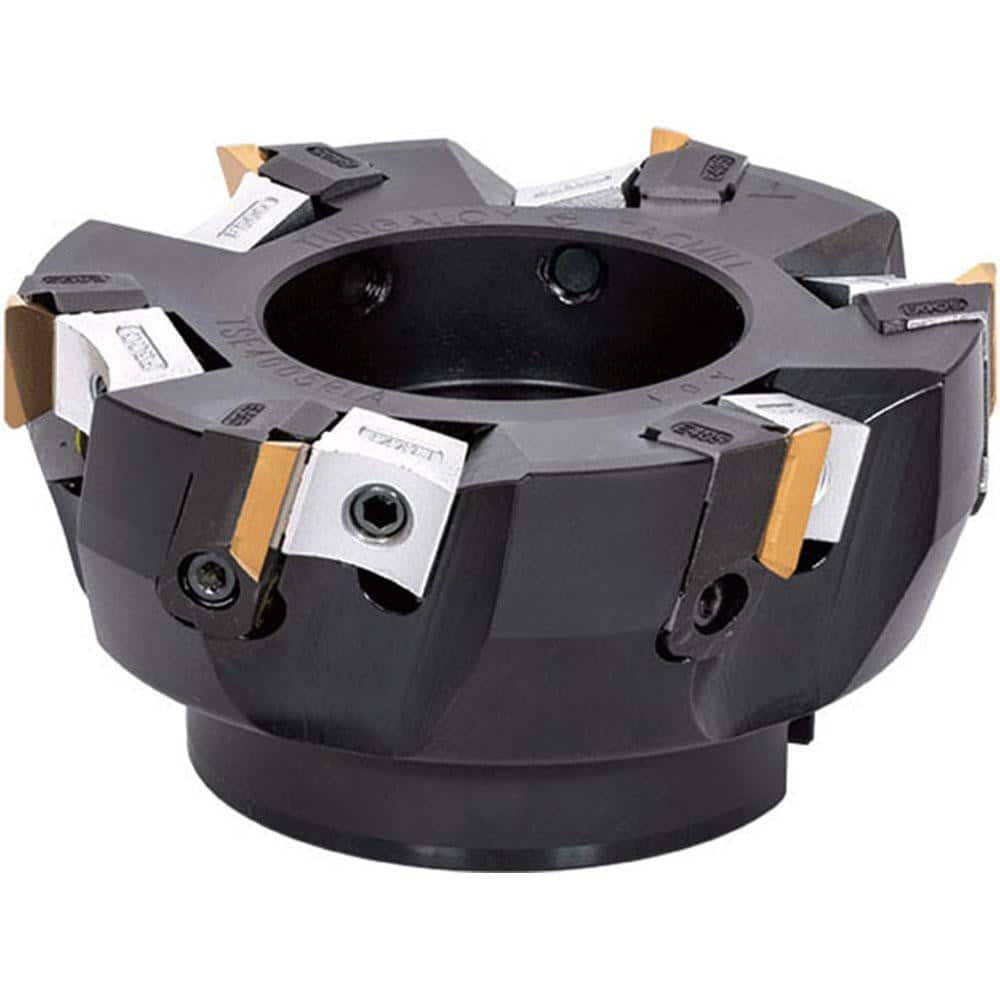

Indexable Square-Shoulder Face Mill: TSE4010RIA, 47.6300″ Arbor Hole Dia, Uses 12, TEEN Inserts, No, Series TSE
Item #: 79970984
Brand: Tungaloy
Model #: 6809349
Product Specifications
| Minimum Cutting Diameter (mm) | 250.00 |
| Maximum Cutting Diameter (mm) | 250.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Arbor Hole Diameter (mm) | 47.63 |
| Arbor Hole Diameter (Decimal Inch) | 47.6300 |
| Compatible Insert Size Code | TEEN |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | TSE |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Lead Angle | 90 |
| Rake | Positive (Radial); Positive (Axial) |
| Rake Angle | 17.0 |
| Series | TSE |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Keyway Width (mm) | 25.40 |
| Keyway Width (Decimal Inch) | 25.4000 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
| Number Of Cutter Inserts | 12 |
