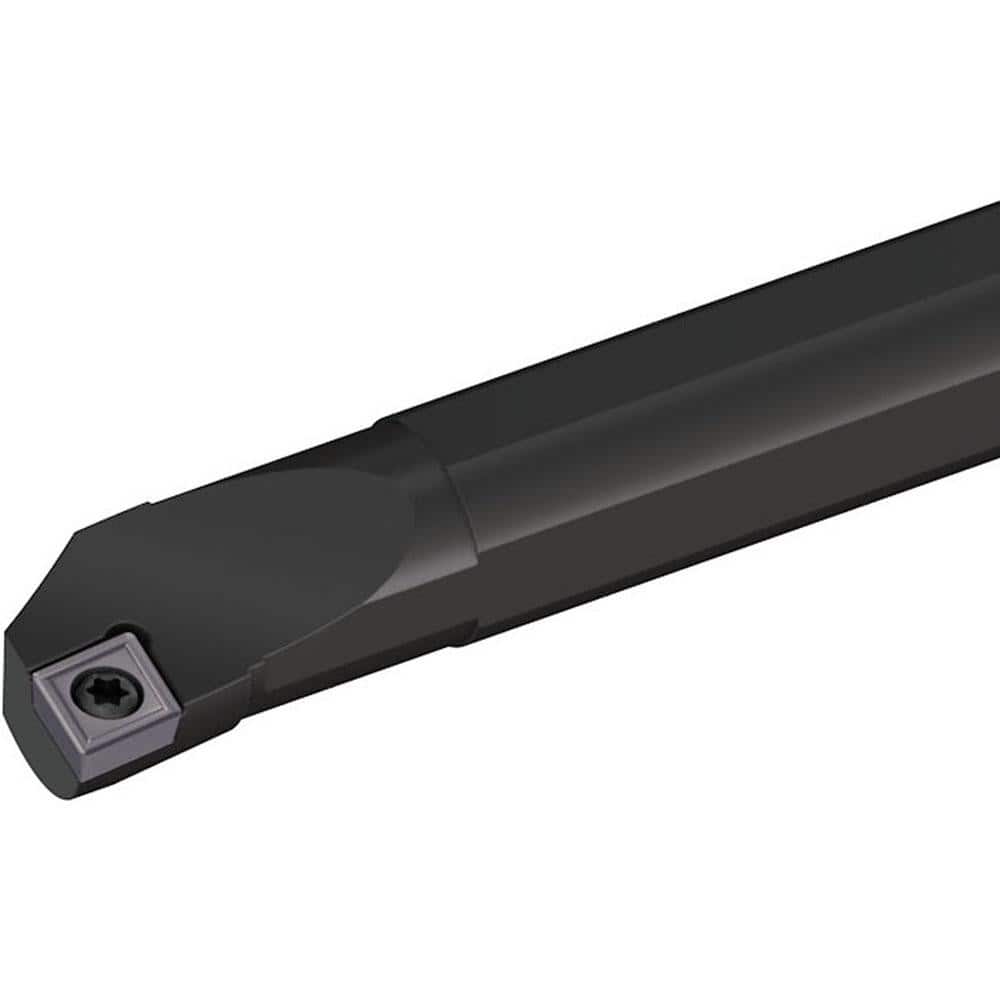

Indexable Boring Bar: A16-SCLCL3, 1.00 mm Shank Dia, 95.00° N/A Steel 7.0000″ OAL, Screw,
Item #: 79955126
Brand: Tungaloy
Model #: 6850045
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.2800 |
| Maximum Bore Depth (Decimal Inch) | 4.0000 |
| Maximum Bore Depth (Inch) | 4 |
| Toolholder Style | SCLC |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 1.00 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (mm) | 7.00 |
| Overall Length (Inch) | 7 |
| Compatible Insert Size Code | 32.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | -4.00 |
| Lead Angle | 95.00 |
| Series | SCLC |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1560 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
