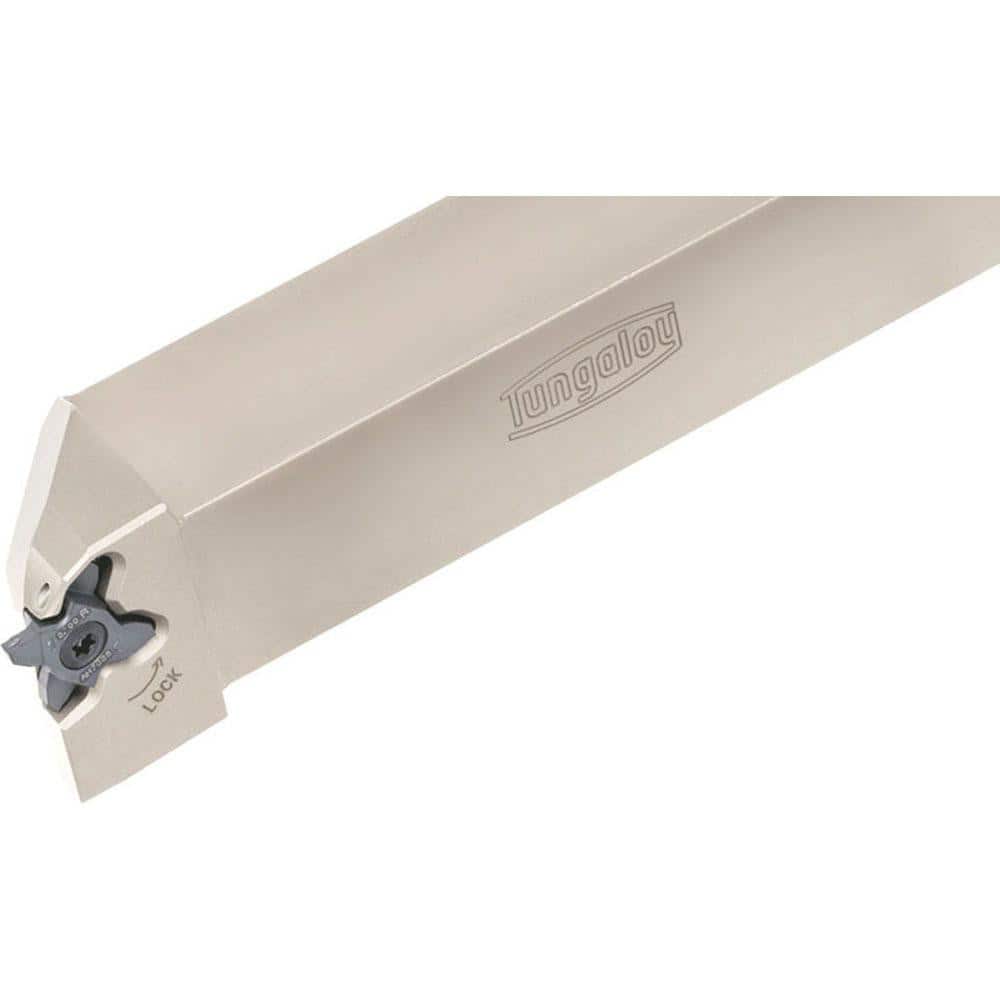

Indexable Grooving Toolholder: STCL2525Z18-CHP, Uses 18 Inserts, Through Coolant
Item #: 79950937
Brand: Tungaloy
Model #: 6775398
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 18 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (mm) | 0.33 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | STC |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 18 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | STC |
| Overall Length (mm) | 135.00 |
| Cutting Tool Application | Grooving; Threading |
| Back of Bar to Cutting Edge (mm) | 30.00 |
| Head Height (Decimal Inch) | 25.0000 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 23.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
