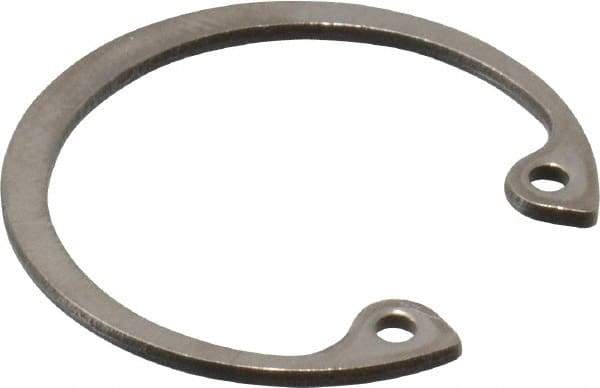

Rotor Clip - 0.042" Thick, Passivated Finish, Stainless Steel Snap Internal Retaining Ring - 0.046" Groove Width, 0.028" Groove Depth, 0.931" Groove Diam, Grade 15-7 Grade 632
Item #: 79949301
Brand: Rotor Clip
Model #: HO-87SS MPS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 7/8 |
| Bore Diameter (Decimal Inch) | 0.8750 |
| Bore Diameter (mm) | 22.23 |
| Groove Diameter (Decimal Inch) | 0.9310 |
| Groove Diameter (mm) | 23.65 |
| Groove Width (Decimal Inch) | 0.0460 |
| Groove Width (mm) | 1.17 |
| Free Outside Diameter (Decimal Inch) | 0.9710 |
| Free Outside Diameter (mm) | 24.66 |
| Military Specification | MS 16625-4087 |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Ring Thickness (mm) | 1.07 |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0280 |
| Groove Depth (mm) | 0.71 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.015 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 2080 (Groove Safety Factor); 5227 (Ring Safety Factor) |
| Hardness | Rockwell 30N 63-69.5 |
| Fastener Standard | AMS-5529; UNS S15700 |
