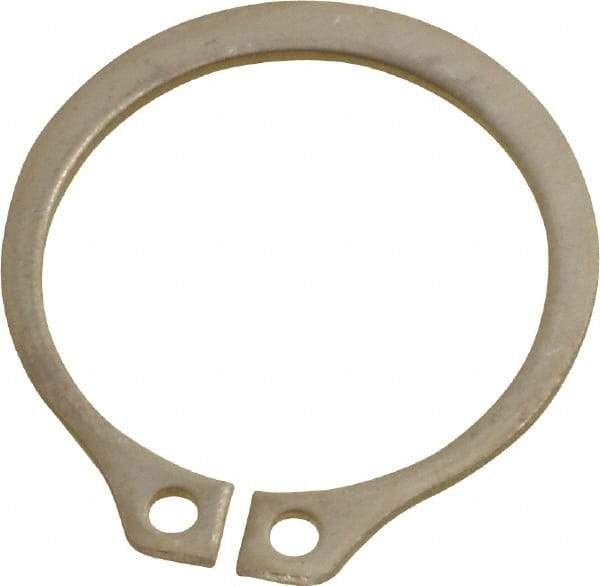

Rotor Clip - 23.88mm Groove Diam, 1" Shaft Diam, Passivated Stainless Steel, Snap External Retaining Rings - 0.046" Groove Width, 0.03" Groove Depth, 0.042" Ring Thickness, Grade 15-7 Grade 632
Item #: 79949053
Brand: Rotor Clip
Model #: SH-100SS MPS
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 25.40 |
| Shaft Diameter (Inch) | 1 |
| Shaft Diameter (Decimal Inch) | 1.0000 |
| Groove Diameter (Decimal Inch) | 0.9400 |
| Groove Diameter (mm) | 23.88 |
| Free Diameter (Decimal Inch) | 0.9250 |
| Free Diameter (mm) | 23.50 |
| Free Outside Diameter (Decimal Inch) | 1.4100 |
| Military Specification | MS 16624-4100 |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0460 |
| Groove Width (mm) | 1.17 |
| Groove Depth (Decimal Inch) | 0.0300 |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Ring Thickness (mm) | 1.07 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.010 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell C 44-51 |
| Fastener Standard | AMS-5529; UNS S15700 |
