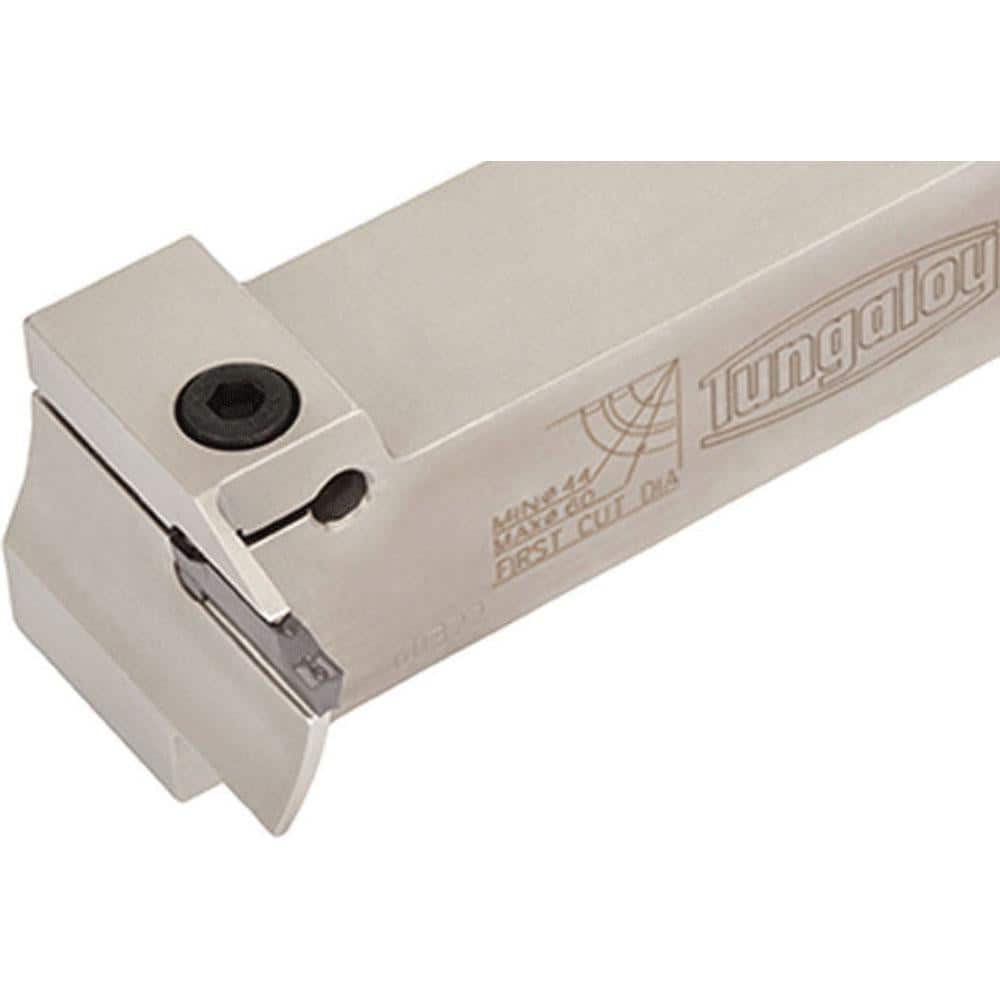

Indexable Grooving Toolholder: CTFVL2525-5T20-070110, Uses 5 Inserts, No
Item #: 79938874
Brand: Tungaloy
Model #: 6860723
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 5 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | CTFV |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 5 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | CTFV |
| Overall Length (mm) | 150.00 |
| Cutting Tool Application | Grooving; Facing |
| Maximum Workpiece Diameter (mm) | 110.00 |
| Back of Bar to Cutting Edge (mm) | 45.00 |
| Minimum Hole Diameter (mm) | 70.00 |
| Minimum Hole Diameter (Decimal Inch) | 70.0000 |
| Head Height (Decimal Inch) | 25.0000 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 22.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
