Milling Insert: OFHT 050410SN-M50 CTPM225, CTPM225, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 79817565
Brand: Ceratizit
Model #: 51003210

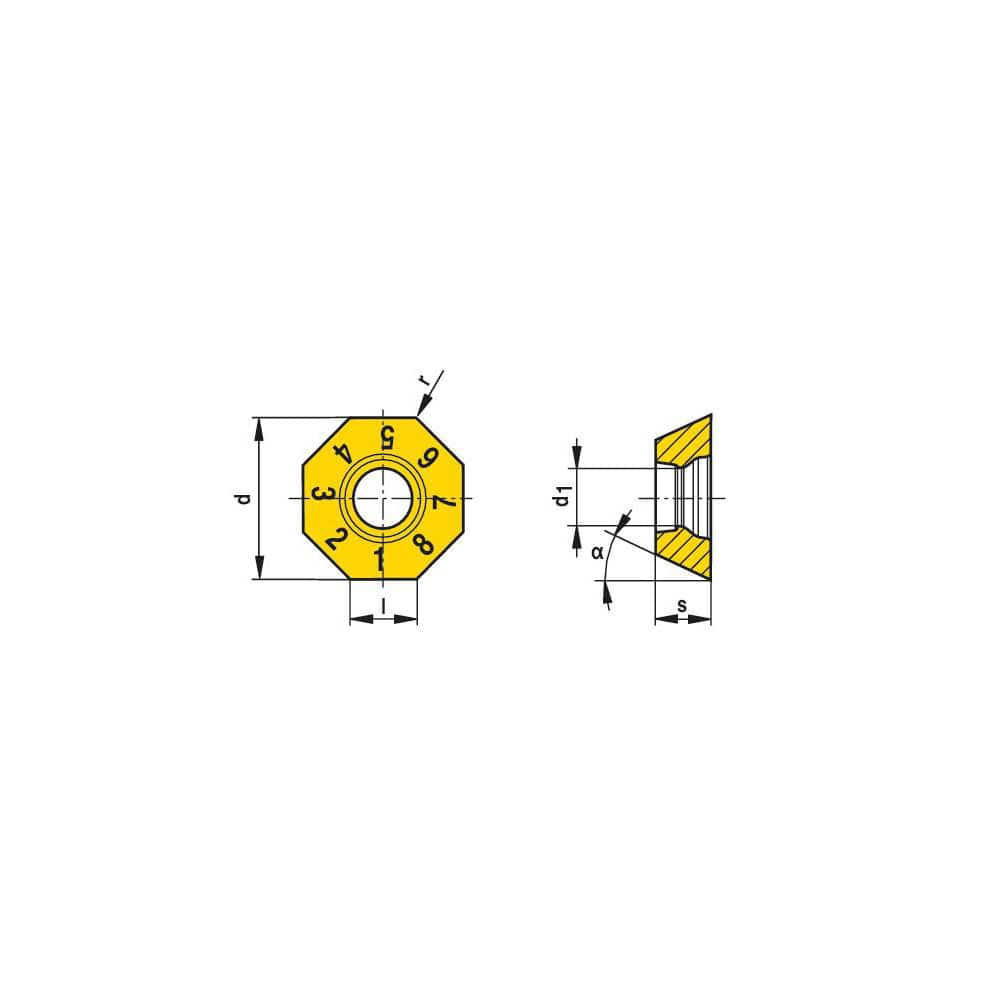

Product Specifications
| Insert Style | OFHT |
| Insert Size Code | 0504 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPM225 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Neutral |
| Relief Angle | 25.00 |
| Series | OFHT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (Decimal Inch) | 0.0728 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1772 |
| Insert Shape | Octagon |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | OFHT 050410SN-M50 CTPM225 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
