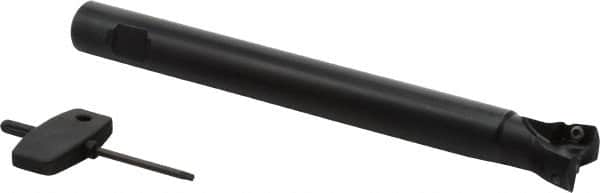

Seco - 93° Lead Angle, 1" Min Cut Diam, 0.28" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, XO.. 1204.. Insert Style, 7.87" Overall Length, Through Coolant, Straight Shank
Item #: 79732640
Brand: Seco
Model #: 07257
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 2 |
| Insert Style | XO.. 1204.. |
| Toolholder Style | R217.79 |
| Overall Length/Projection (Decimal Inch) | 7.8700 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 6.6900 |
| Weldon Flat | Yes |
| Through Coolant | Yes |
| Maximum RPM | 20800 |
