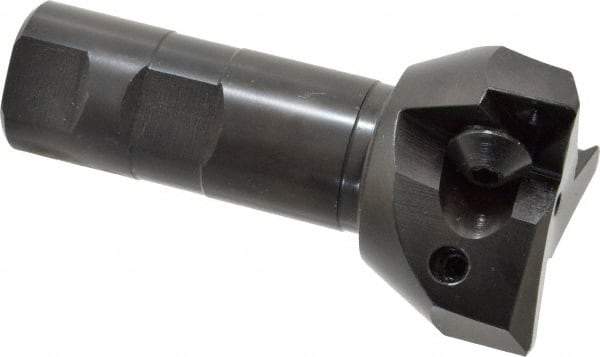

Value Collection - 2" Cut Diam, 0.656" Max Depth of Cut, 1" Shank Diam, 3-11/16" OAL, Indexable Square Shoulder End Mill - TPC 32..., TPG 32., TPU 32. Inserts, Weldon Shank
Item #: 79697488
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Inch) | 3-11/16 |
| Overall Length/Projection (Decimal Inch) | 3.6875 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6560 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | TPG |
| Number of Flutes | 3 |
| Head Length (Inch) | 1-13/32 |
| Head Length (Decimal Inch) | 1.4063 |
| Weldon Flat | Yes |
| Insert Compatibility | TPC 32..., TPG 32., TPU 32. |
