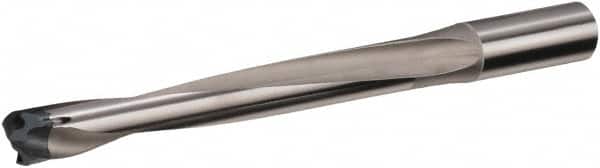

Sumitomo - 16.51 to 17.5mm Diam, 8xD, 5.984" Max Depth, 3/4" Shank Diam, 6.701" Flute, 8.701" OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 79628921
Brand: Sumitomo
Model #: 5L00W0G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 16.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.6500 |
| Maximum Drill Diameter (mm) | 17.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.6890 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 5.9840 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (Decimal Inch) | 6.7010 |
| Body Length (Decimal Inch) | 6.7010 |
| Overall Length (Decimal Inch) | 8.7010 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 2.0000 |
