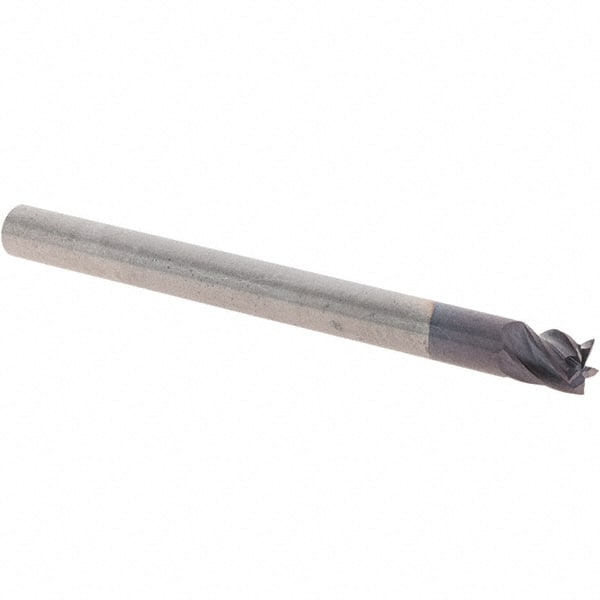

Square End Mill: 1/8'' Dia, 1/8'' LOC, 1/8'' Shank Dia, 1.5'' OAL, 5 Flutes Helical Flute, Centercutting, RH Cut, RH Flute, Series 178
Item #: 79483137
Brand: M.A. Ford?
Model #: 17812500A
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 38 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.1250 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Shank Diameter Tolerance | +0/-0.0031 in |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Series | 178 |
