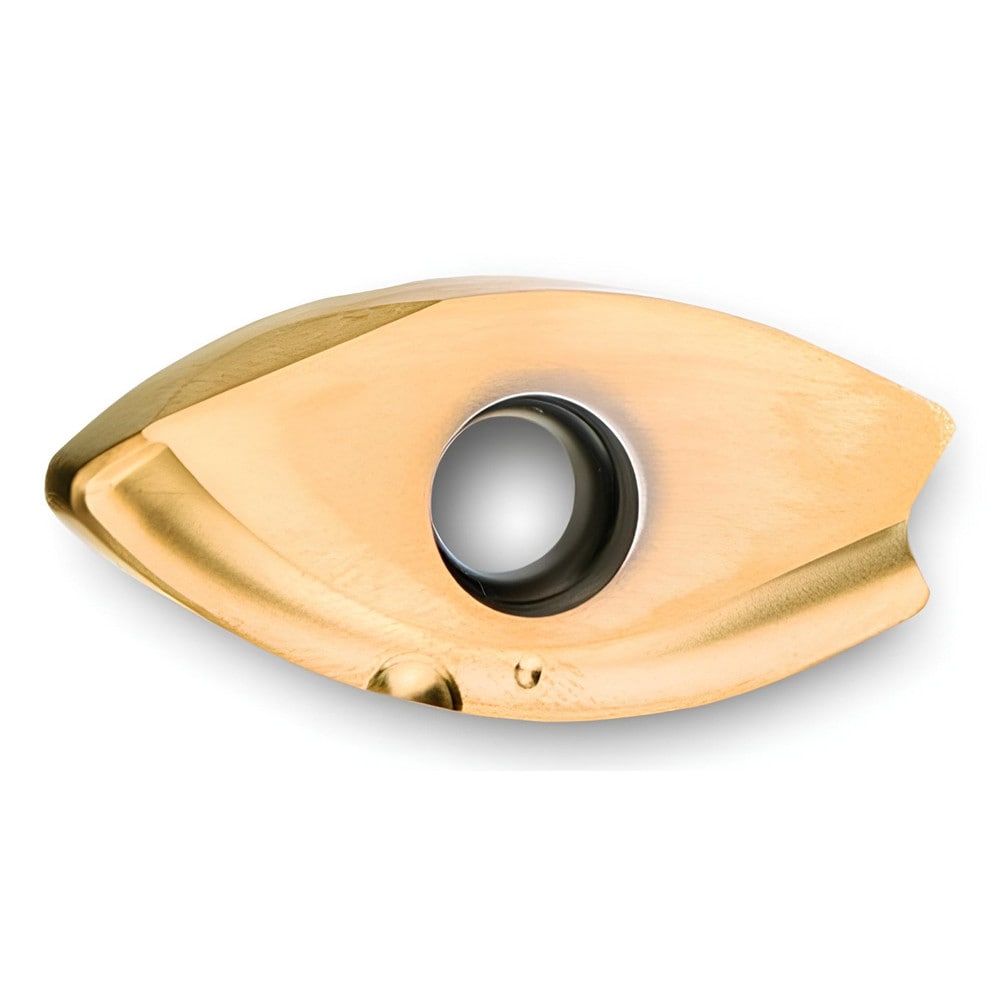

Brand: Ingersoll Cutting Tools / Part #: 5813444
Item #: 67319467
Brand: Ingersoll Cutting Tools
Model #: 5813444
Product Specifications
| Insert Style | NCEU |
| Insert Size Code | 500700 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Inscribed Circle (Decimal Inch) | 0.6220 |
| Corner Radius (Inch) | 1 |
| Insert Hand | Right Hand |
| Series | NCEU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 1.4330 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Ball Nose |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | NCEU500700R |
| Rake Angle | 7.000 |
| Manufacturers Catalog Number | NCEU500700R IN2530 |
| Cutter Series Compatibility | 2TW7K |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Ball Nose |
| Length of Cut (mm) | 36.4000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.7630 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2740 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 1.4330 |
