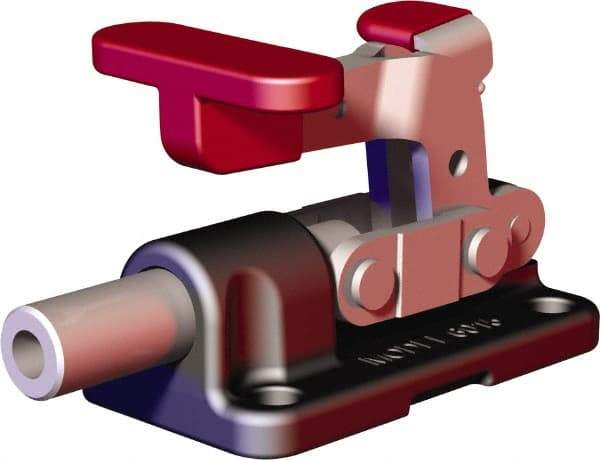

De-Sta-Co - 562.02 Lb Load Capacity, Flanged Base, Carbon Steel, Standard Straight Line Action Clamp - 4 Mounting Holes, 0.22" Mounting Hole Diam, 0.39" Plunger Diam, T-Handle Handle
Item #: 79120564
Brand: De-Sta-Co
Model #: 6015-R
Exact Tooling IR#: 04
Features and Benefits
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Load Capacity (N) | 2500.00 |
| Load Capacity (Lb.) | 562.02 |
| Plunger Travel (mm) | 17.78 |
| Plunger Travel (Decimal Inch) | 0.7000 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 1/4-20 |
| Plunger Centerline Height (mm) | 12.70 |
| Plunger Centerline Height (Decimal Inch) | 0.5000 |
| Plunger Diameter (Decimal Inch) | 0.3900 |
| Plunger Diameter (mm) | 9.91 |
| Base Style | Flanged |
| Handle Style | T-Handle |
| Material | Carbon Steel |
| Overall Length (Decimal Inch) | 2.9600 |
| Overall Height (Decimal Inch) | 1.5900 |
| Base Length (Decimal Inch) | 2.2500 |
| Base Width (Decimal Inch) | 1.2600 |
| Handle Color | Red |
| Number of Mounting Holes | 4 |
| Length Distance Between Mount Holes (mm) | 44.45 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.7500 |
| Width Distance Between Mount Holes (mm) | 22.10 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.8700 |
| Mounting Hole Diameter (mm) | 5.59 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Base Width (mm) | 32.00 |
| Base Length (mm) | 57.15 |
| Overall Length (mm) | 75.18 |
| Overall Height (mm) | 40.39 |
| Maximum Mechanical Advantage | 35:1 (Pulling); 35:1 (Pushing) |
