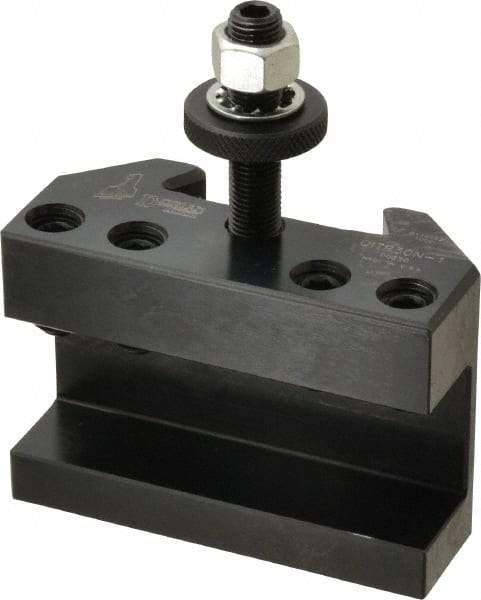

Dorian Tool - Series BXA, #1 Turning & Facing Tool Post Holder - 320mm Lathe Swing, 2.24" OAH x 3-1/4" OAL, 1" Max Tool Cutting Size, 44.37mm Centerline Height
Item #: 79047023
Brand: Dorian Tool
Model #: 73310100250
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | BXA |
| Tool Post Holder Number | 1 |
| Tool Post Holder Type | Turning & Facing Holder |
| Lathe Swing (mm) | 320.00 |
| Lathe Swing (Inch) | 13 to 15 |
| Through Coolant | No |
| Overall Height (mm) | 56.90 |
| Overall Height (Decimal Inch) | 2.2400 |
| Overall Length (mm) | 82.55 |
| Overall Length (Inch) | 3-1/4 |
| Overall Length (Decimal Inch) | 3.2500 |
| Maximum Cutting Tool Size (mm) | 25.40 |
| Maximum Cutting Tool Size (Inch) | 1 |
| Centerline Height (mm) | 44.37 |
| Centerline Height (Decimal Inch) | 1.7470 |
| Dorian #1 - Dimension A (mm) | 11.11 |
| Dorian #1 - Dimension A (Inch) | 7/16 |
| Dorian #1 - Dimension A (Decimal Inch) | 0.4375 |
